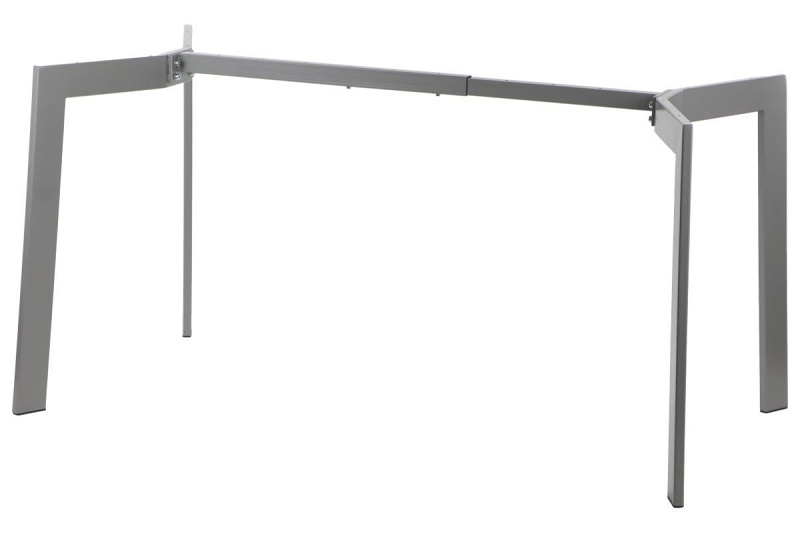

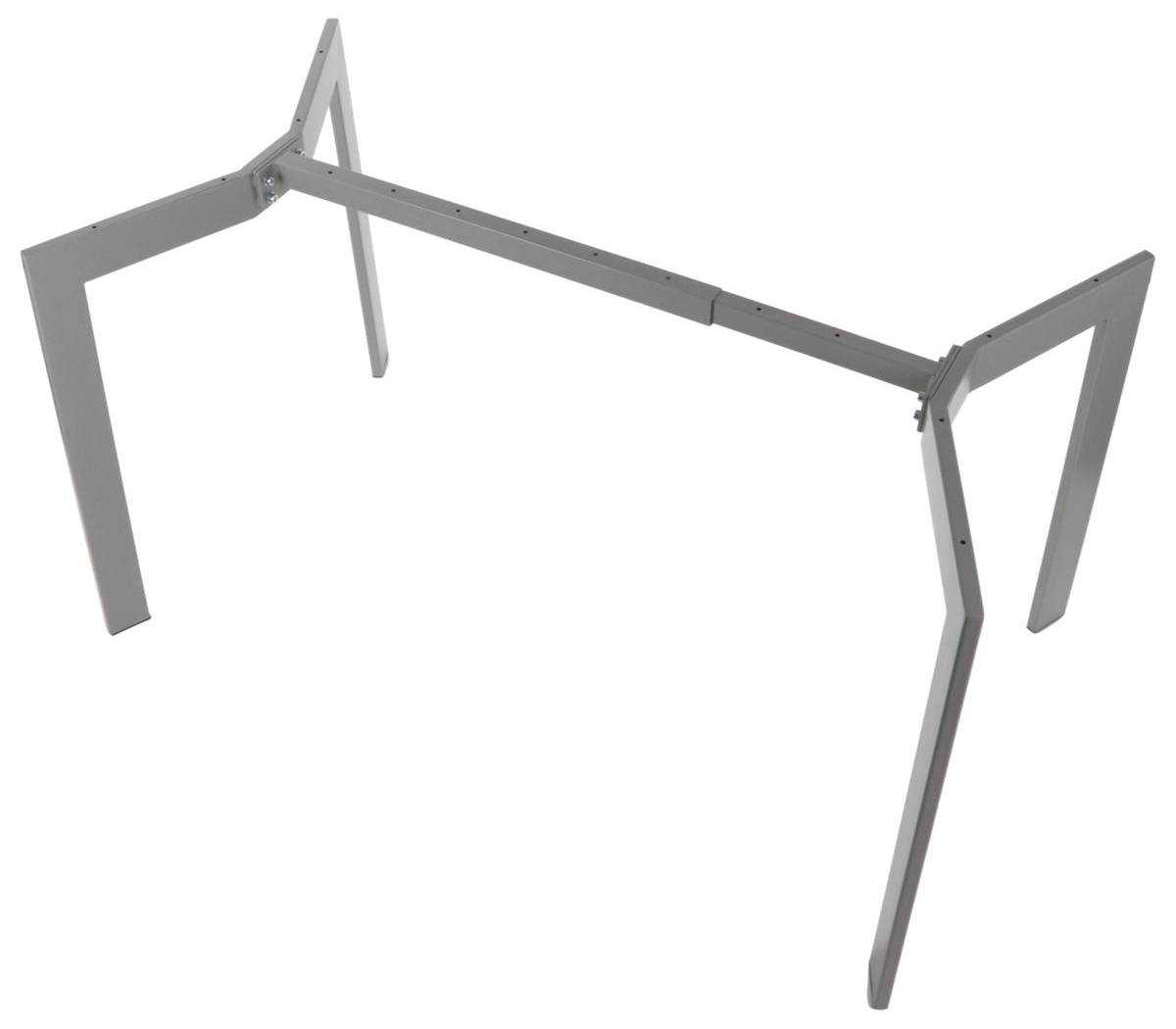

ADJUSTABLE FRAME NY-HF05RB/A

LENGHT ADJUSTABLE 105,5-145,5 cm

DEPTH 78 cm, GREY COLOUR

BASIC FEATURES

• adjustable lengh in range of 105,5-145,5 cm - every 10 cm

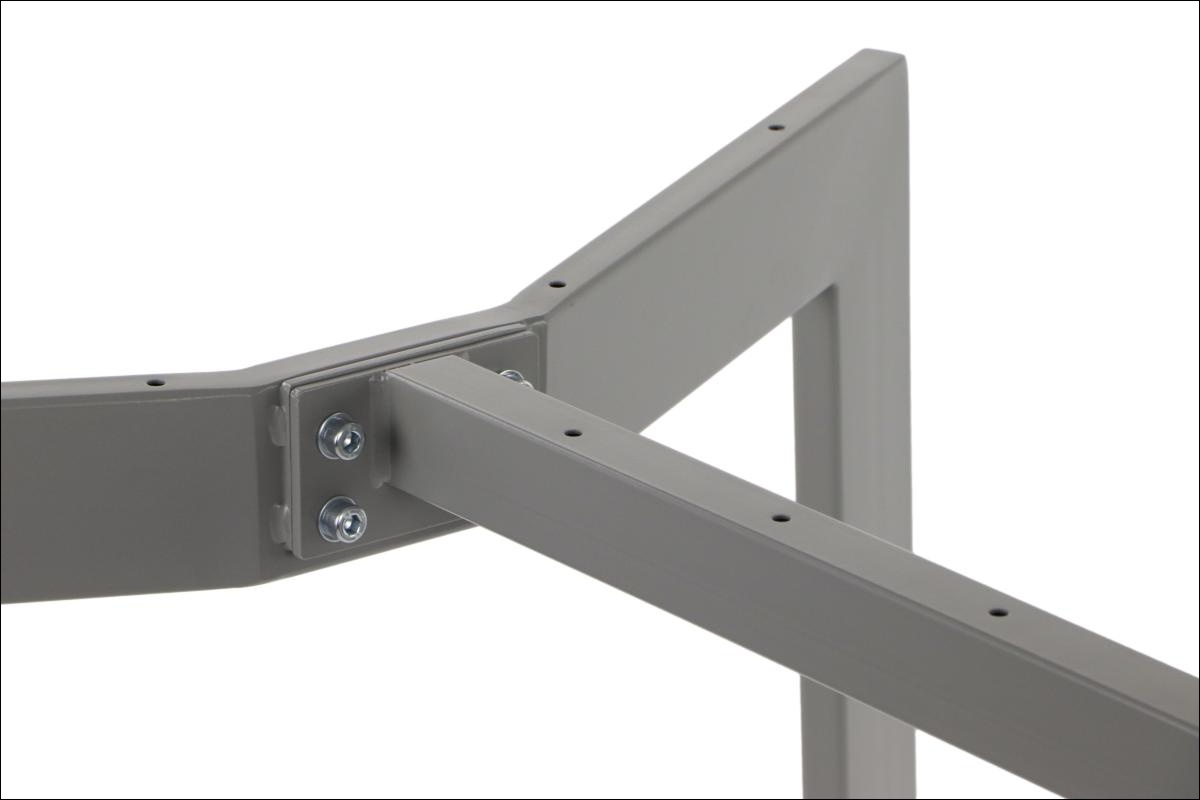

• screwed frame, powder coat

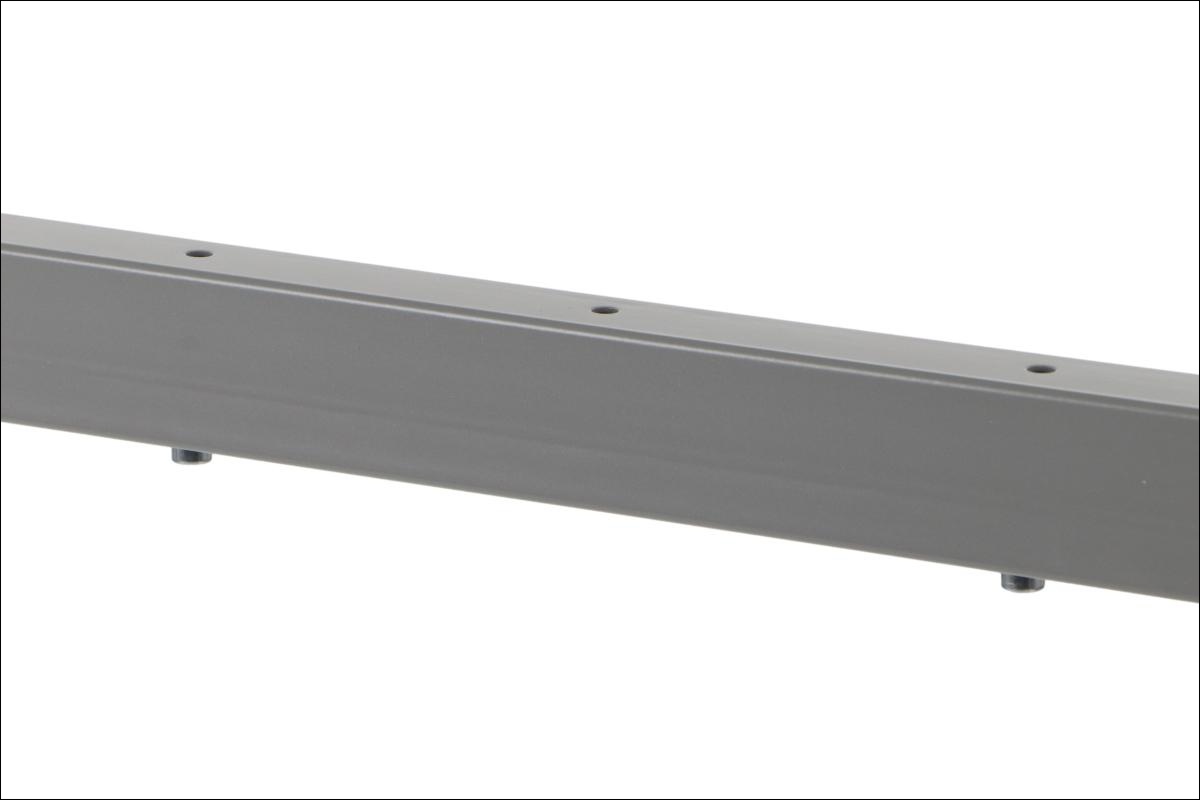

• beam cross-section: 40x30 mm
• leg cross-section: 70x20 mm
• height: 72,5 cm
• wall thickness: leg - 1,2 mm, beam - 1,2 mm

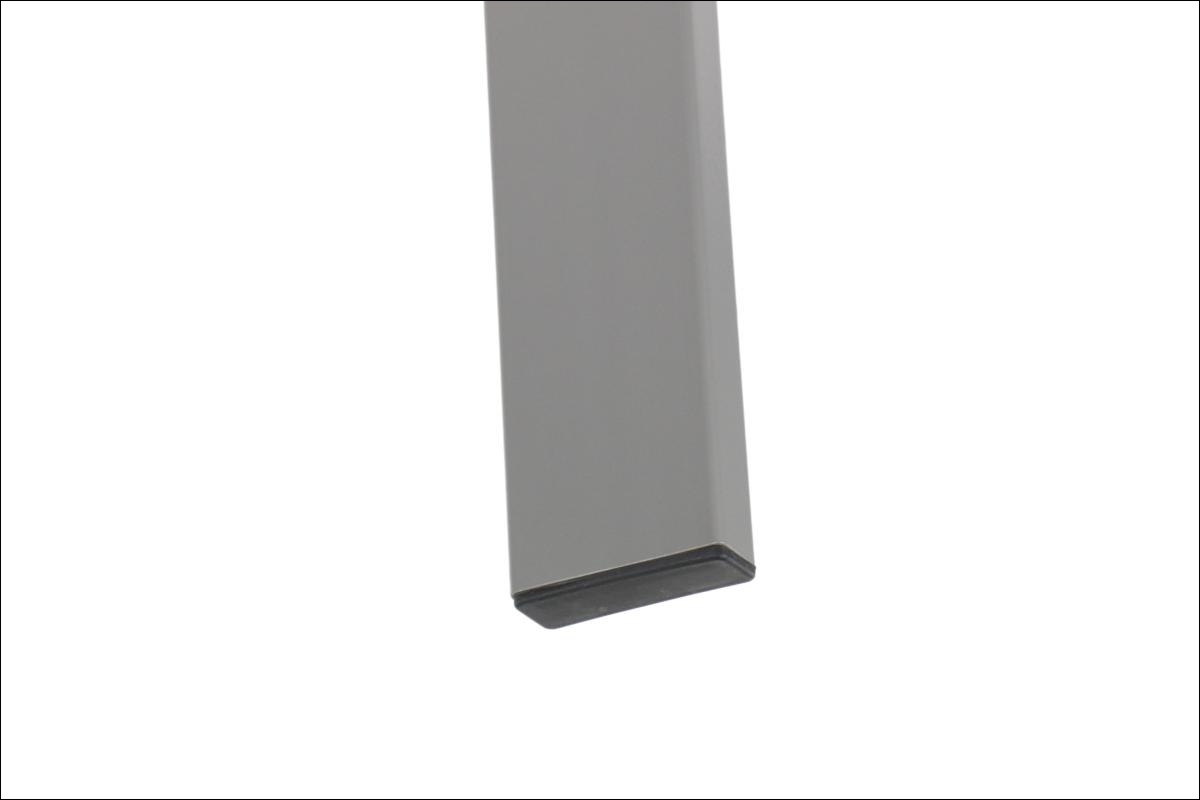

• legs finished with a plastic foot

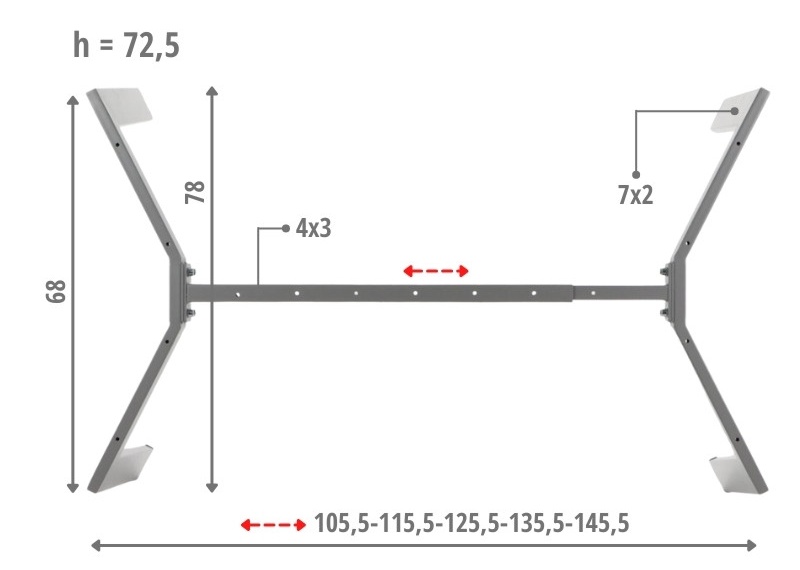

DIMENSIONS

DIMENSIONS ACCURACY: 1 CM
SUBJECT TO CHANGE DIMENSIONS TO THE EXTENT WHICH WOULD NOT CAUSE IMPORTANT CHANGES OF PRODUCT CHARACTERISTIC

DETAILS

(click to enlarge)
