EAN-Code

63x63 cm5903917403481
Höhe:68 - 74 cm
Bodenplatte - Abmessungen:ca. 60 cm
Bodenplatte - Form:die Kreuzritter
63x63 cm1 Produkt in 1 Paket 8,5kg 65x57x7cm

VarianteNettopreis EinzelhandelVerfügbare Menge
63x63 cm (#265-255)55.63 EUR

Sie können noch maximal 100 Stk. von einem Produkt zur Bestellung hinzufügen

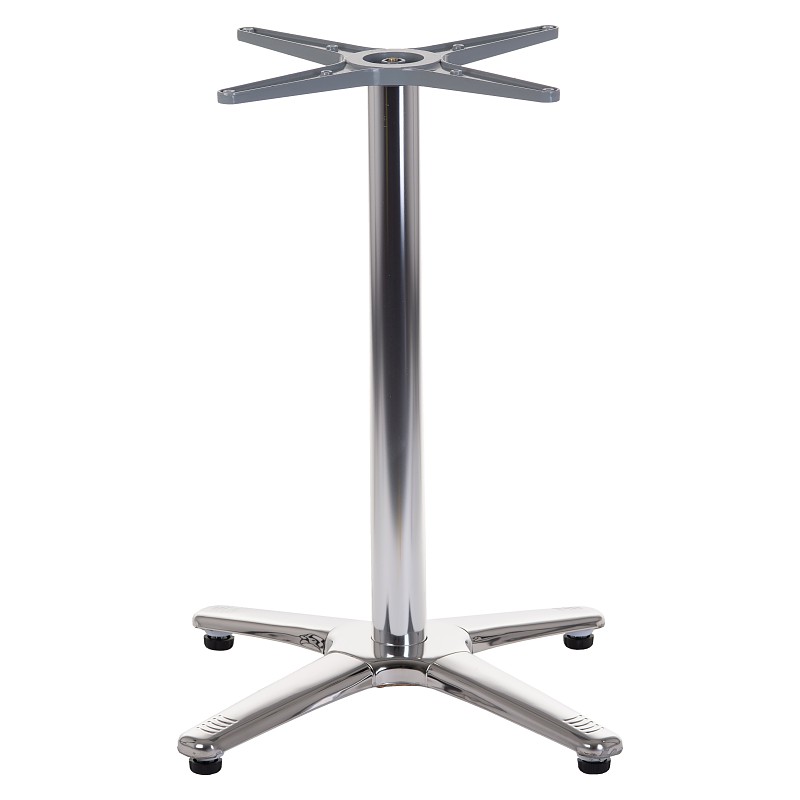

TABLE BASE

SH-7102/A

63x63 cm, height 71-73 cm

BASIC FEATURES
  • mounting plate and leg made of aluminum
  • bottom plate overlay made of stainless steel (201 type) - for dry indoor use
  • bottom plate dimensions: 63x63 cm
  • leg diameter 60 mm, wall thickness 1,2 mm
  • mounting plate dimensions 48,5x48,5 cm
  • mounting plate with 8 holes (diameter 6 mm)

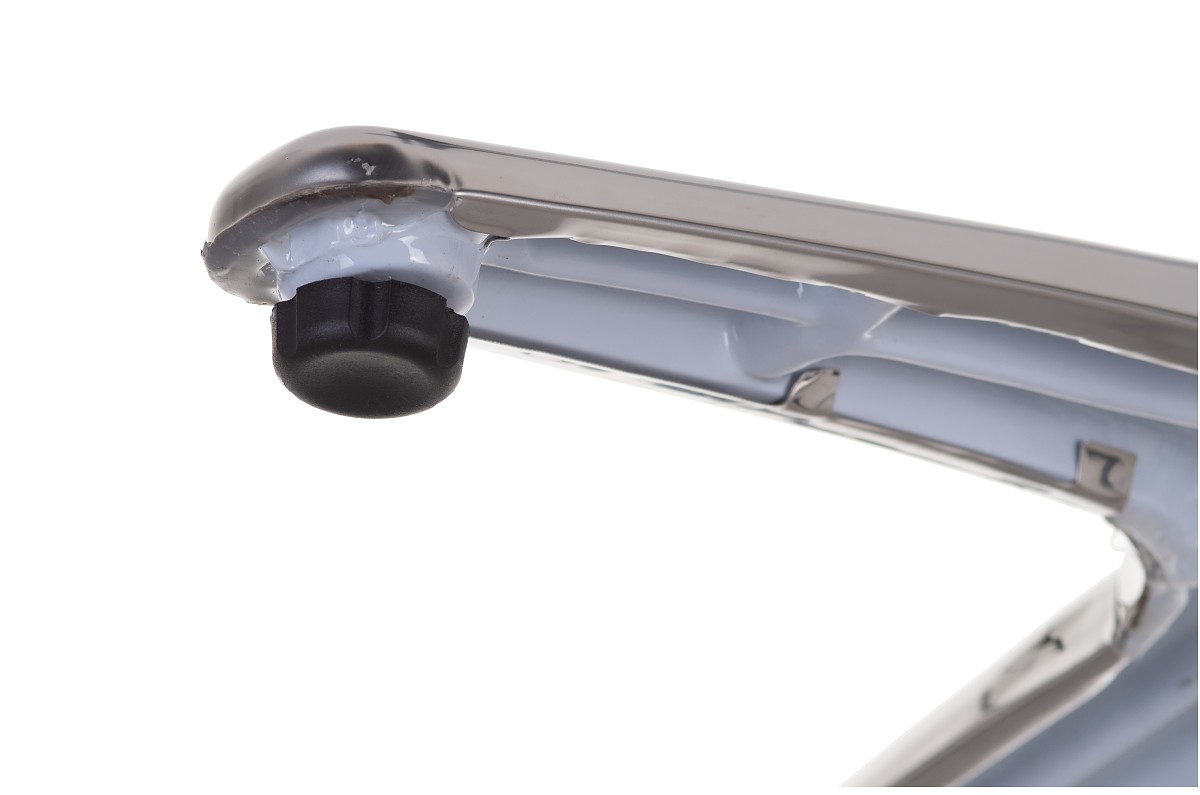

  • adjustable feet
  • screwed base for self assembly
  • weight: 8,5 kg

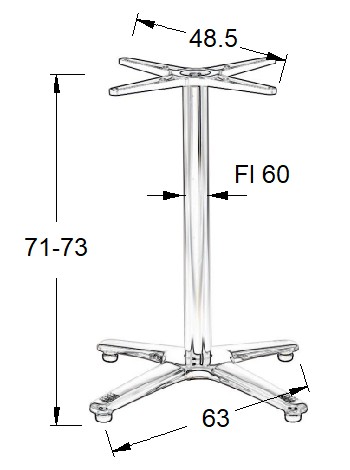

DIMENSIONS

DIMENSIONS ACCURACY: 1 CM
SUBJECT TO CHANGE DIMENSIONS TO THE EXTENT WHICH WOULD NOT CAUSE IMPORTANT CHANGES OF PRODUCT CHARACTERISTIC.

MOUNTING PLATE

BOTTOM PLATE



# Bottom plate dimensions Maximum tabletop size
metal bottom plate (steel, cast iron, etc.) or with steel/cast iron bottom plate weight with plastic bottom plate weight
1 ⌀ 40 cm ⌀ 60 cm ⌀ 55 cm
2 ⌀ 45 cm ⌀ 70 cm ⌀ 65 cm
3 ⌀ 50 cm ⌀ 80 cm ⌀ 75 cm
4 ⌀ 55 cm ⌀ 90 cm ⌀ 80 cm
5 40x40 cm 60x60 cm 60x60 cm
6 45x45 cm 70x70 cm 65x65 cm
7 50x50 cm 80x80 cm 75x75 cm
8 55x55 cm 90x90 cm 80x80 cm
