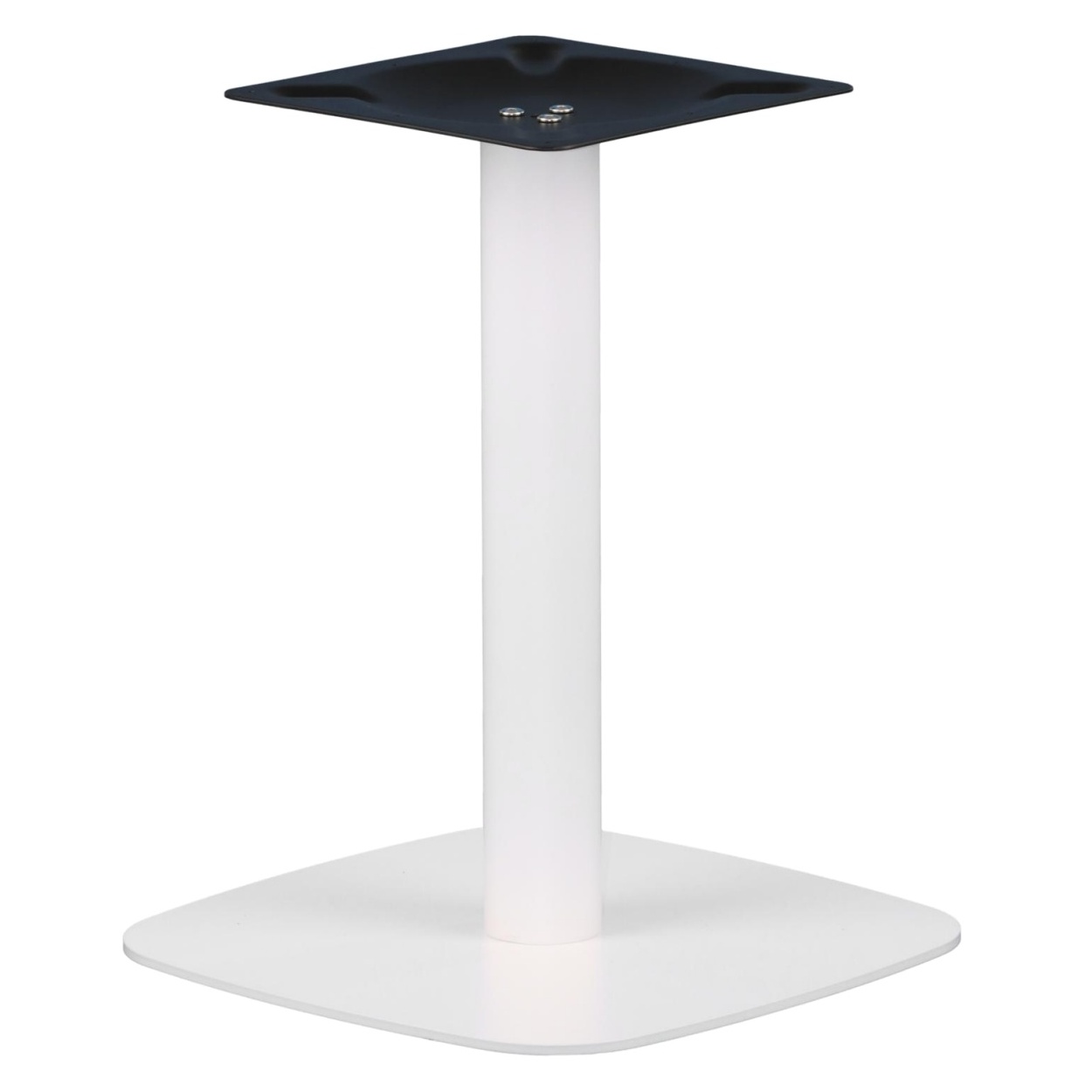

TABLE BASE

SH-3050-2/L/W

44,5x44,5 cm, height 57 cm

BASIC FEATURES

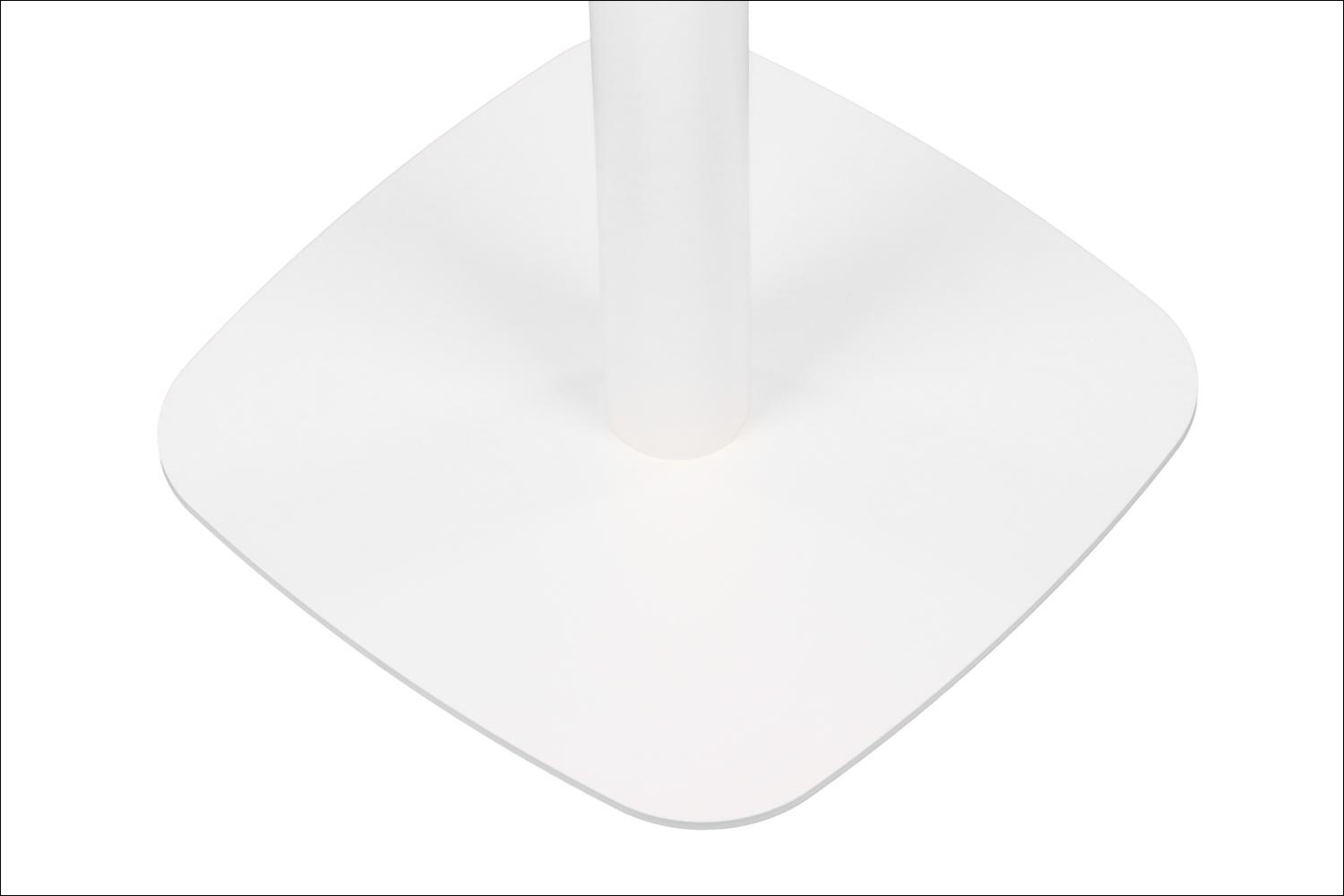

• bottom plate dimension 44,5x44,5 cm
• bottom plate steel thickness 7 mm, powder coated

• legs with a diameter of 75 mm made of powder-coated steel, wall thickness 1,2 mm

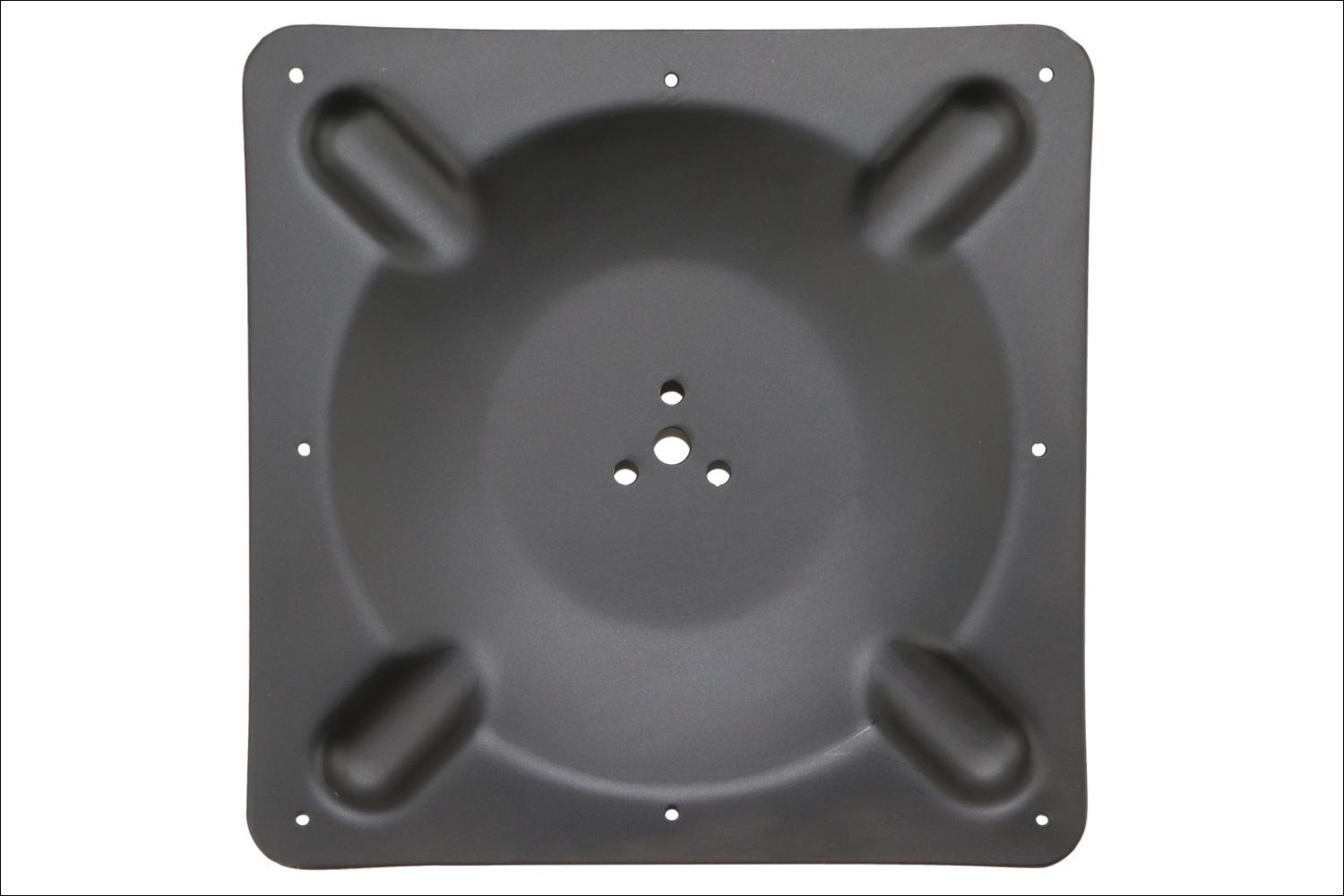

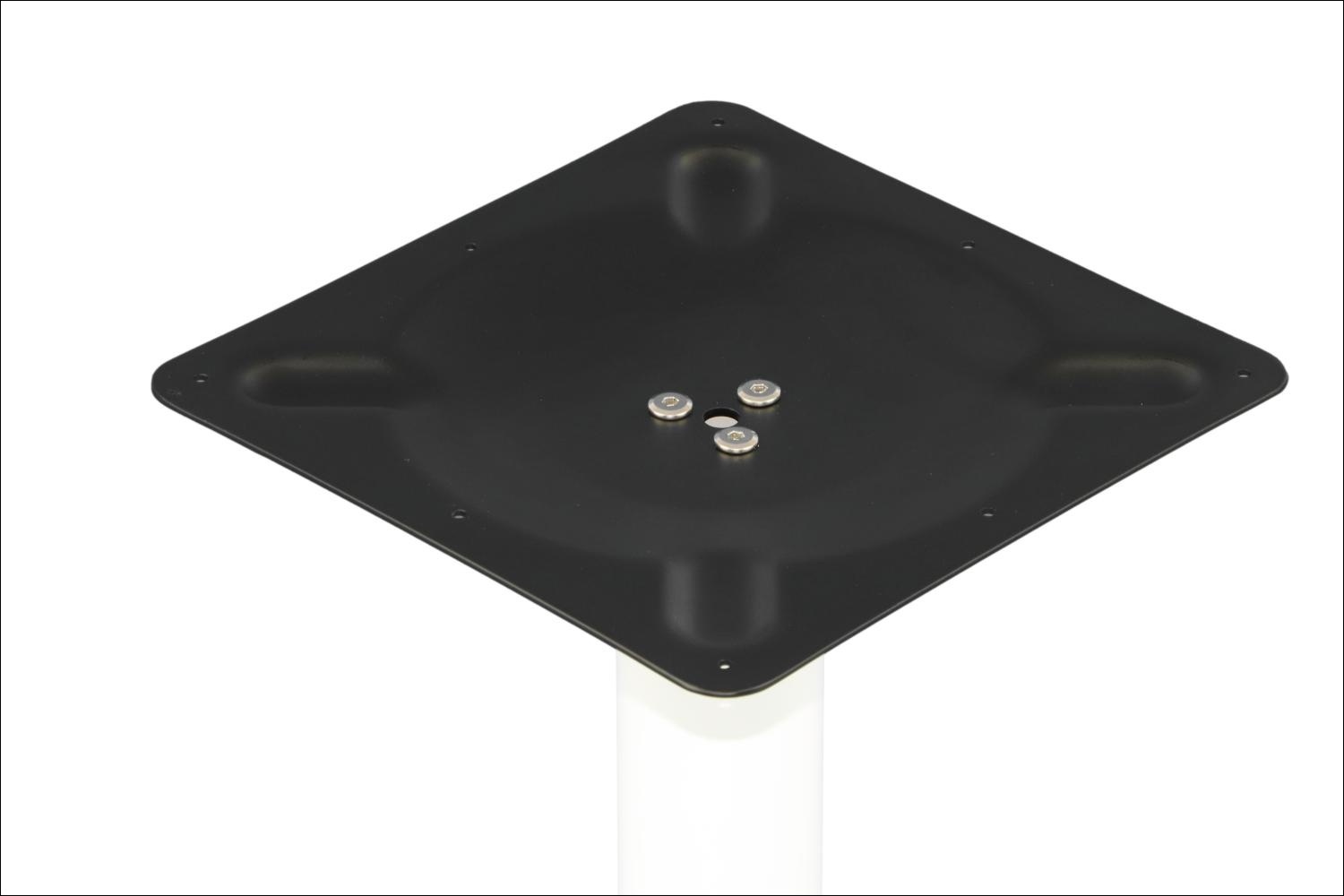

• mounting plate made of 3 mm pressed steel sheet
• mouting plate dimensions 29x29 cm
• mounting plate equipped with 8 mounting holes with a diameter of 5 mm

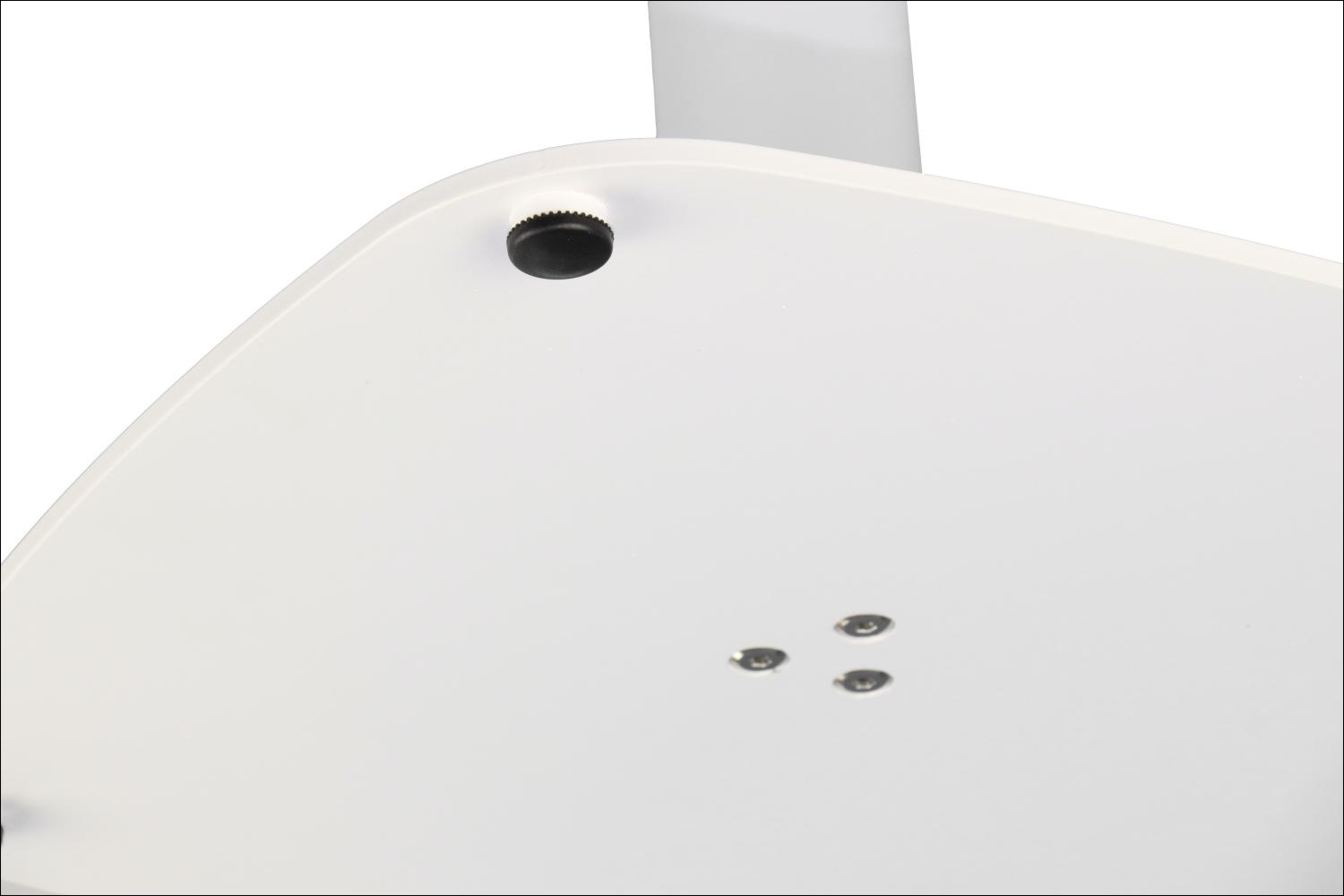

• adjustable feet
• screwed base, delivered in parts
• product intended for use inside dry rooms

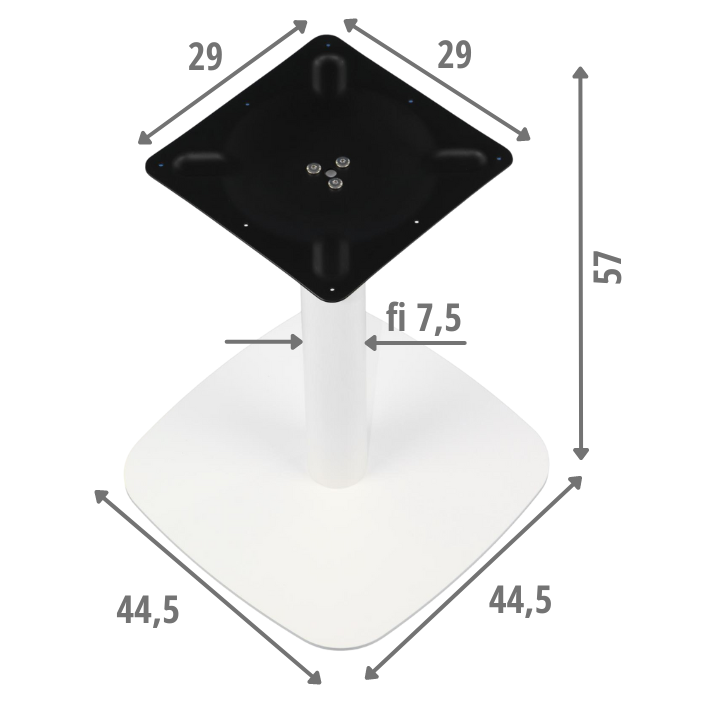

DIMENSIONS

DIMENSIONS ACCURACY: 1 CM
SUBJECT TO CHANGE DIMENSIONS TO THE EXTENT WHICH WOULD NOT CAUSE IMPORTANT CHANGES OF PRODUCT CHARACTERISTIC

DETAILS

---

#	Bottom plate dimensions	Maximum tabletop size
		metal bottom plate (steel, cast iron, etc.) or with steel/cast iron bottom plate weight	with plastic bottom plate weight
1	⌀ 40 cm	⌀ 60 cm	⌀ 55 cm
2	⌀ 45 cm	⌀ 70 cm	⌀ 65 cm
3	⌀ 50 cm	⌀ 80 cm	⌀ 75 cm
4	⌀ 55 cm	⌀ 90 cm	⌀ 80 cm
5	40x40 cm	60x60 cm	60x60 cm
6	45x45 cm	70x70 cm	65x65 cm
7	50x50 cm	80x80 cm	75x75 cm
8	55x55 cm	90x90 cm	80x80 cm
