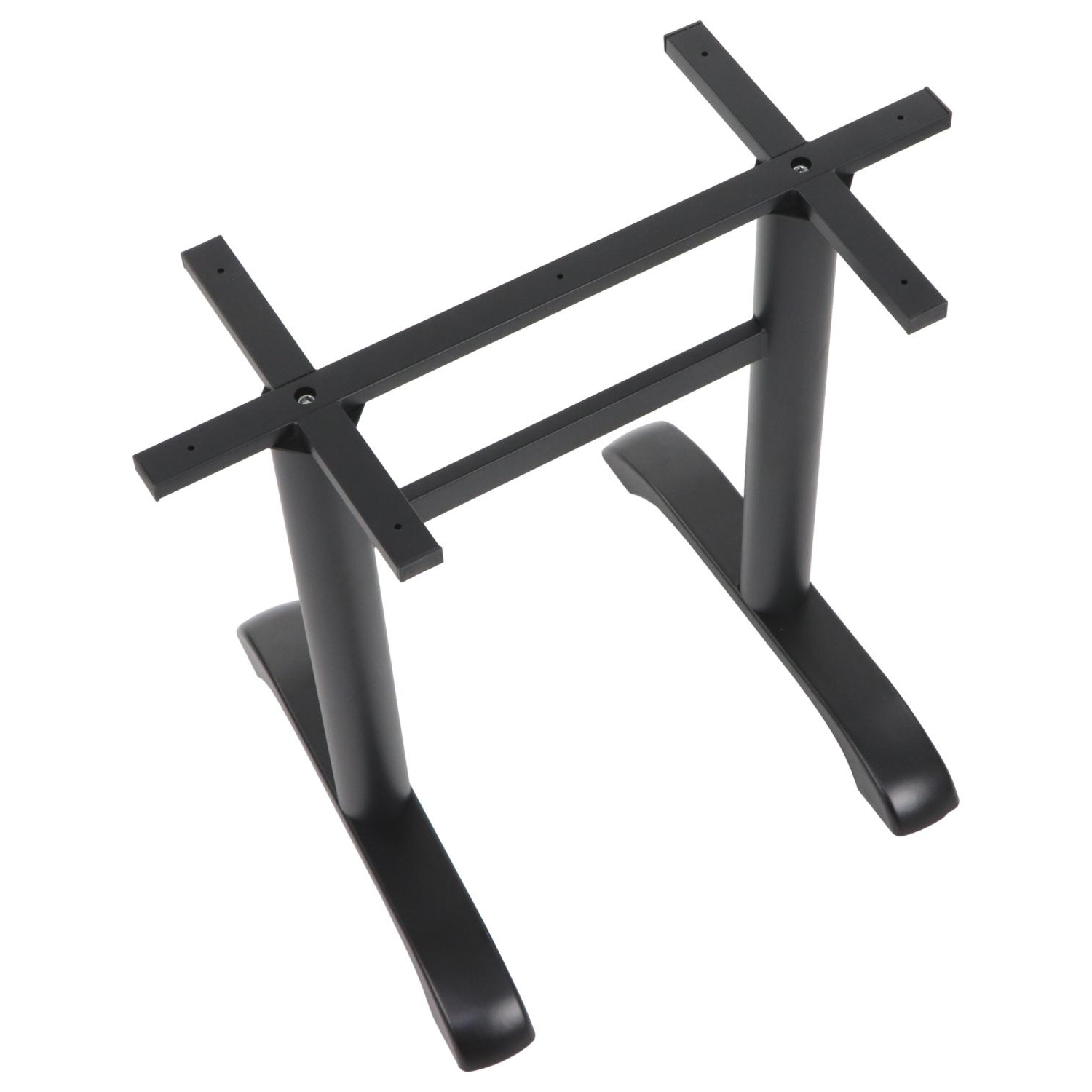

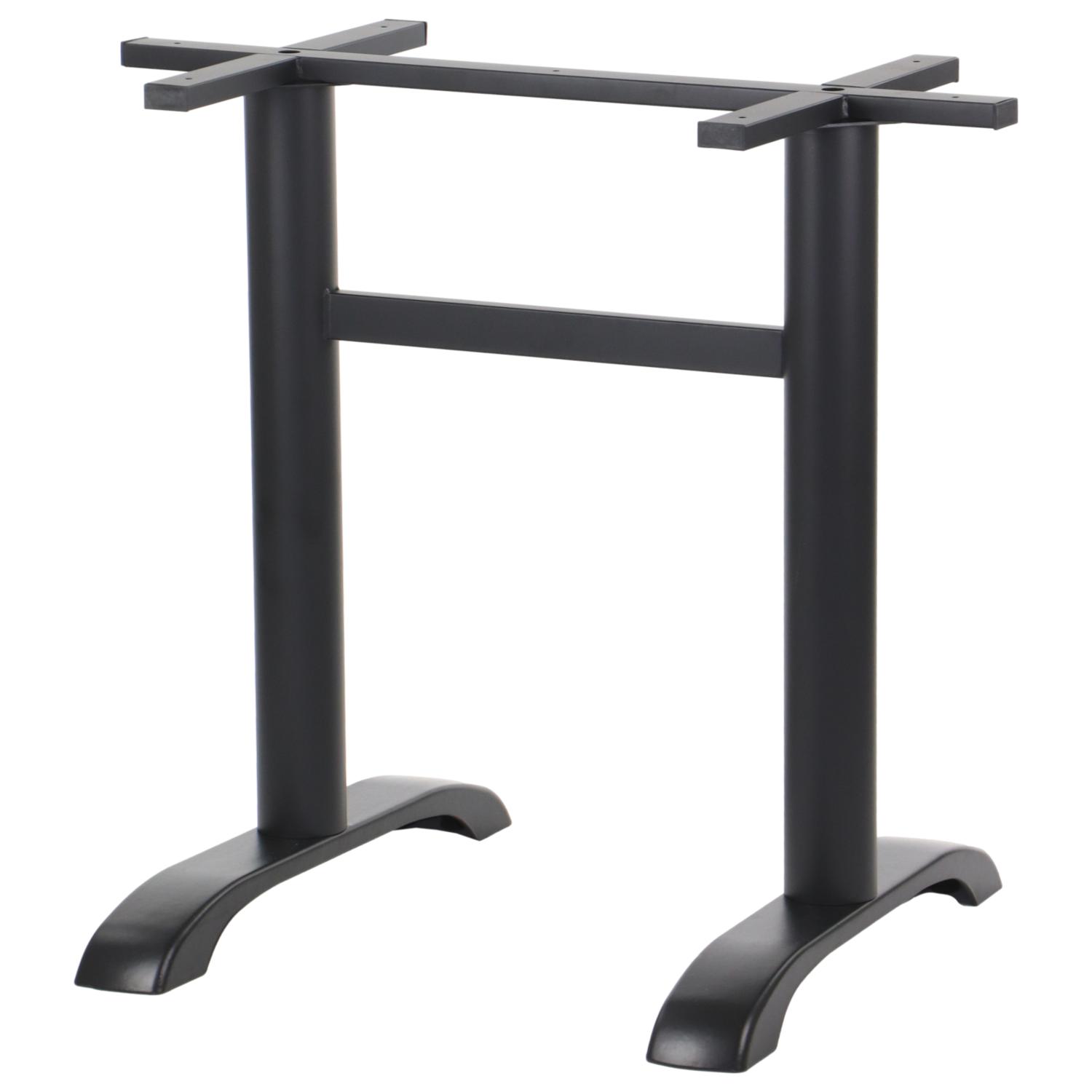

TABLE BASE

SH-5036/BK

58x61 cm, height 73 cm

BASIC FEATURES

• bottom plate dimensions 58x61 cm

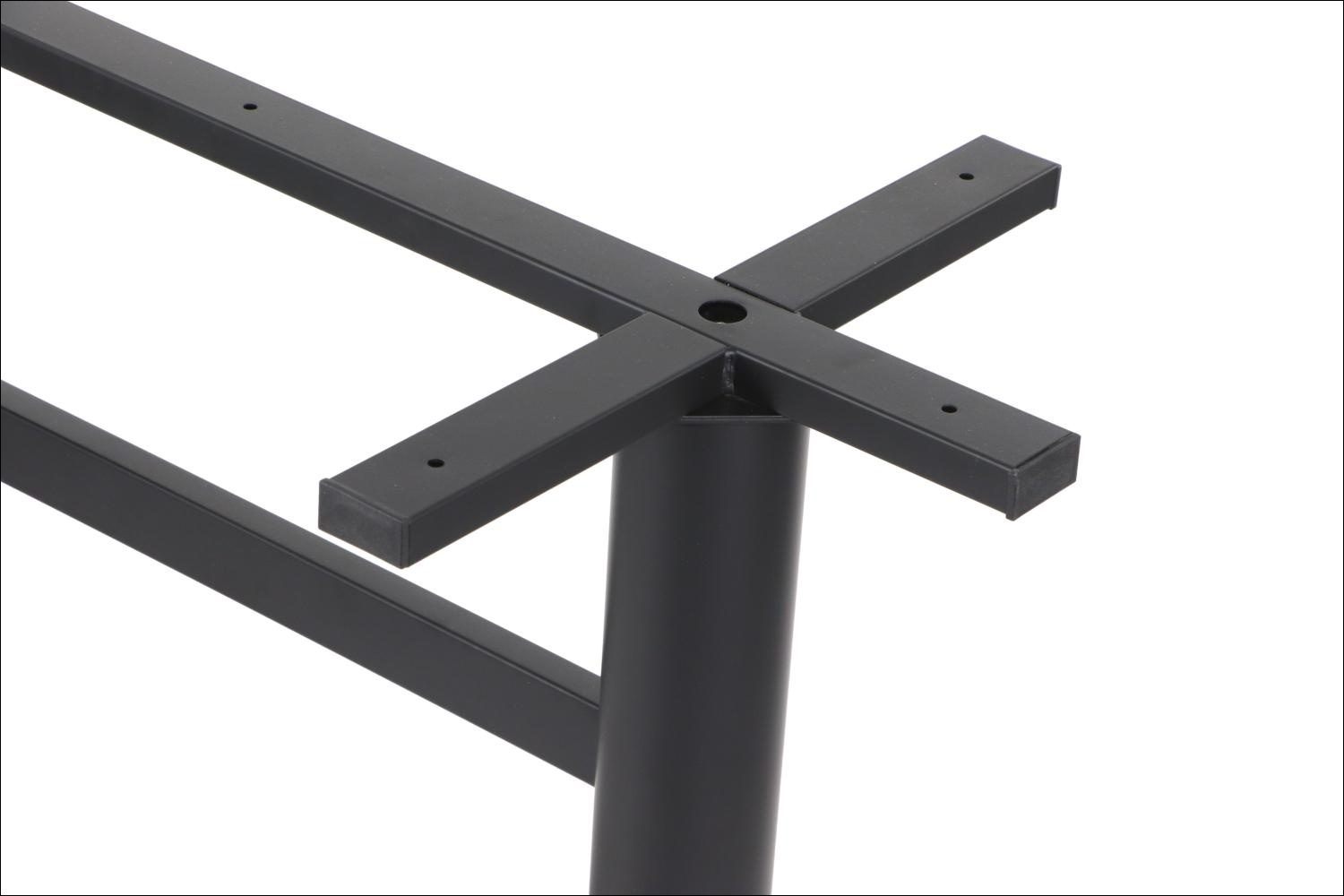

• mounting plate: 80x40 cm steel frame
• mouting plates with 7 holes

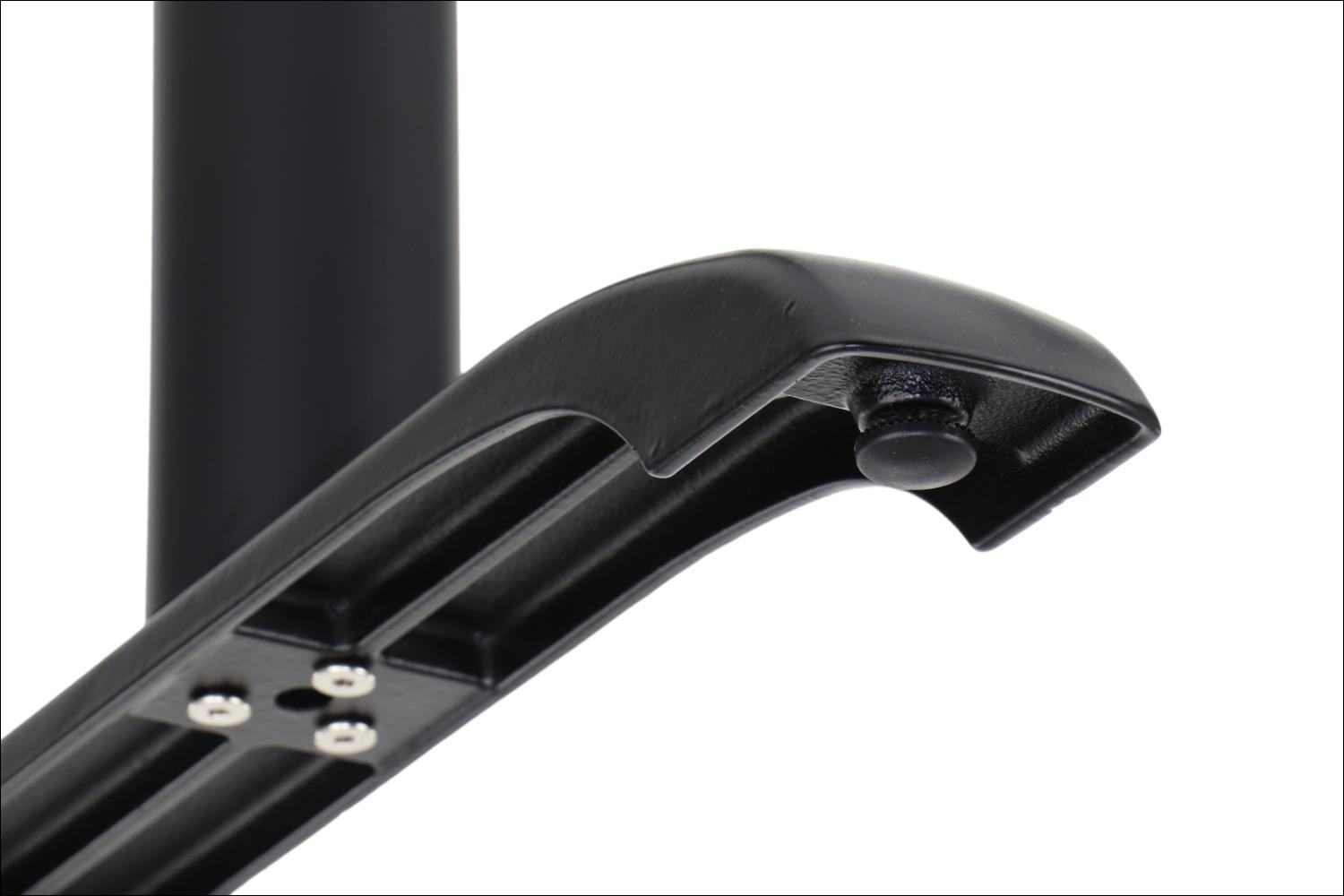

• adjustable feet
• screwed base, delivered in parts

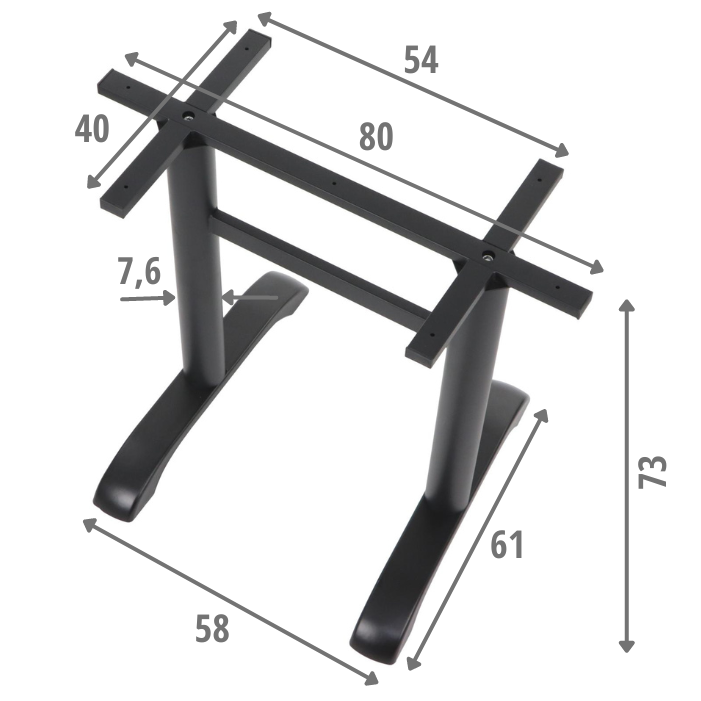

DIMENSIONS

IMENSIONS ACCURACY: 1 CM
SUBJECT TO CHANGE DIMENSIONS TO THE EXTENT WHICH WOULD NOT CAUSE IMPORTANT CHANGES OF PRODUCT CHARACTERISTI

MOUNTING PLATE

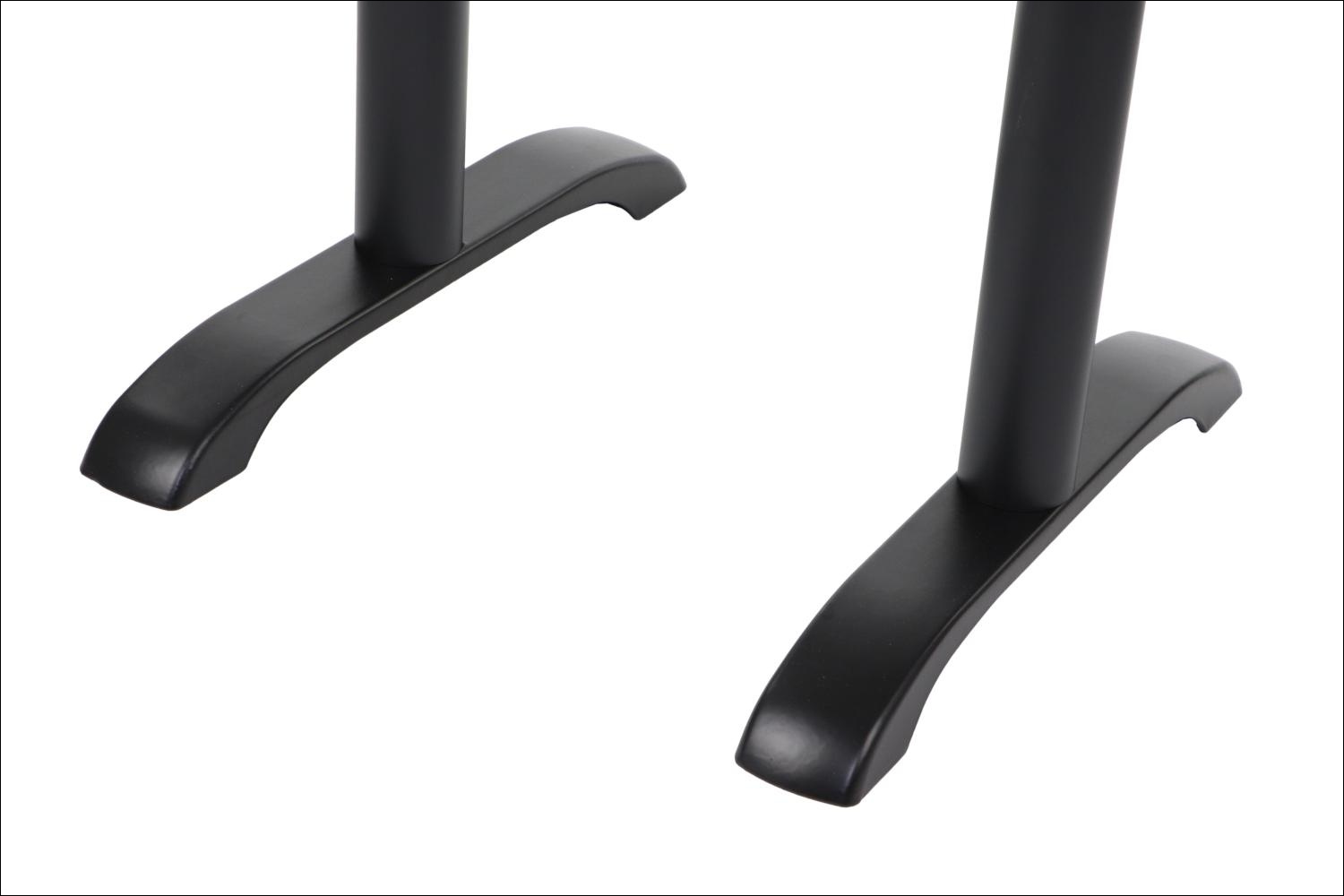

BOTTOM PLATE

---

#	Bottom plate dimensions	Maximum tabletop size
		metal bottom plate (steel, cast iron, etc.) or with steel/cast iron bottom plate weight	with plastic bottom plate weight
1	dia. 40 cm	dia. 60 cm	dia. 55 cm
2	dia. 45 cm	dia. 70 cm	dia. 65 cm
3	dia. 50 cm	dia. 80 cm	dia. 75 cm
4	dia. 55 cm	dia. 90 cm	dia. 80 cm
5	40x40 cm	60x60 cm	60x60 cm
6	45x45 cm	70x70 cm	65x65 cm
7	50x50 cm	80x80 cm	75x75 cm
8	55x55 cm	90x90 cm	80x80 cm
9	71x71 cm	120x120 cm or dia. 130 cm	---
