TABLE BASE

SH-5002-6-H/B

50x50 cm, height 110 cm

BASIC FEATURES

• height 11 0cm
• bottom plate dimensions 50x50 cm
• bottom plate made of 7 mm thick steel sheet, powder coated
• leg made of powder coated steel, cross-section 80x80, wall thickness 1,2 mm

• mounting plate made of 4x2 cm steel profiles, 45x45 cm
• mouting plate with 8 holes, 5 mm diameter

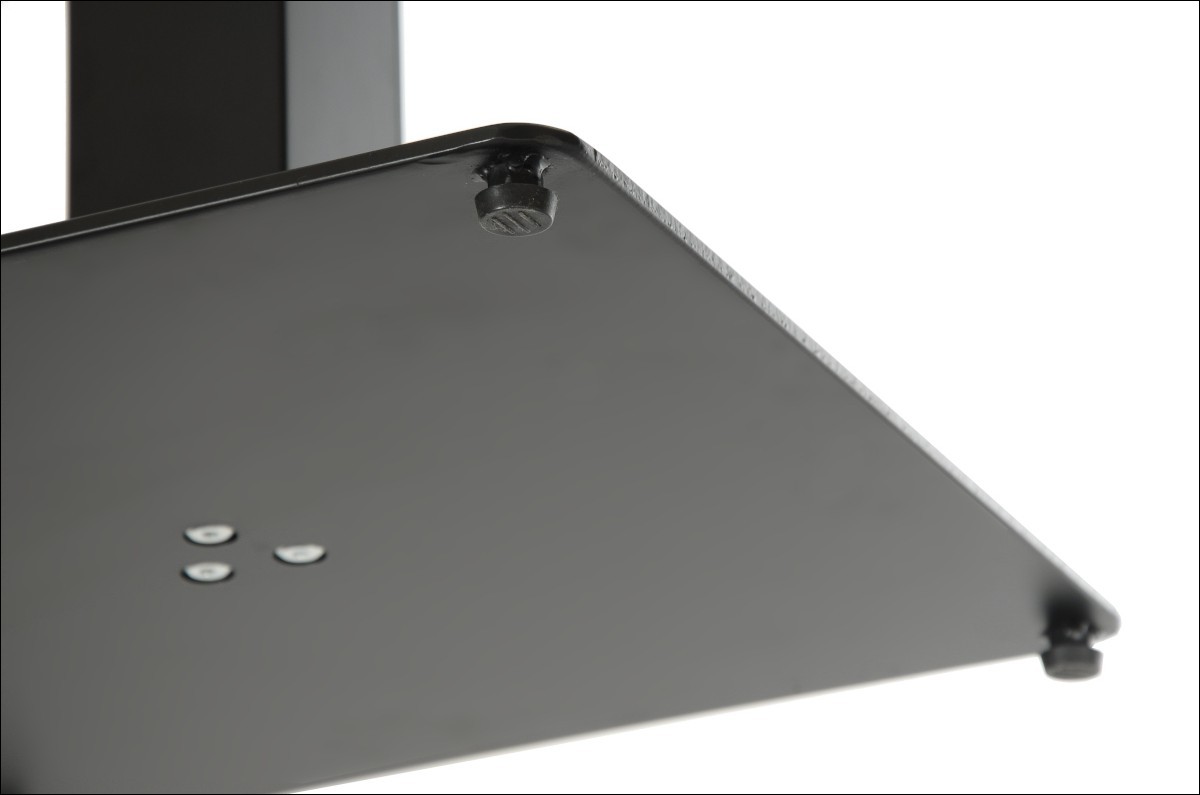

• adjustable feet
• screwed base, delivered in parts

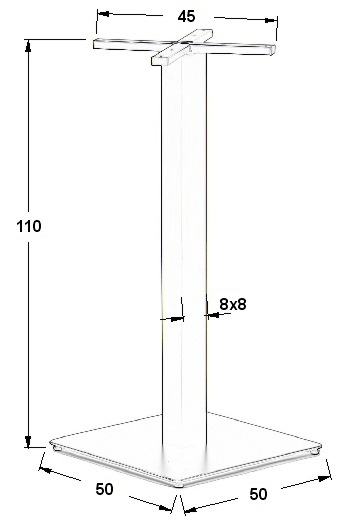

DIMENSIONS

DIMENSIONS ACCURACY: 1 CM
SUBJECT TO CHANGE DIMENSIONS TO THE EXTENT WHICH WOULD NOT CAUSE IMPORTANT CHANGES OF PRODUCT CHARACTERISTIC

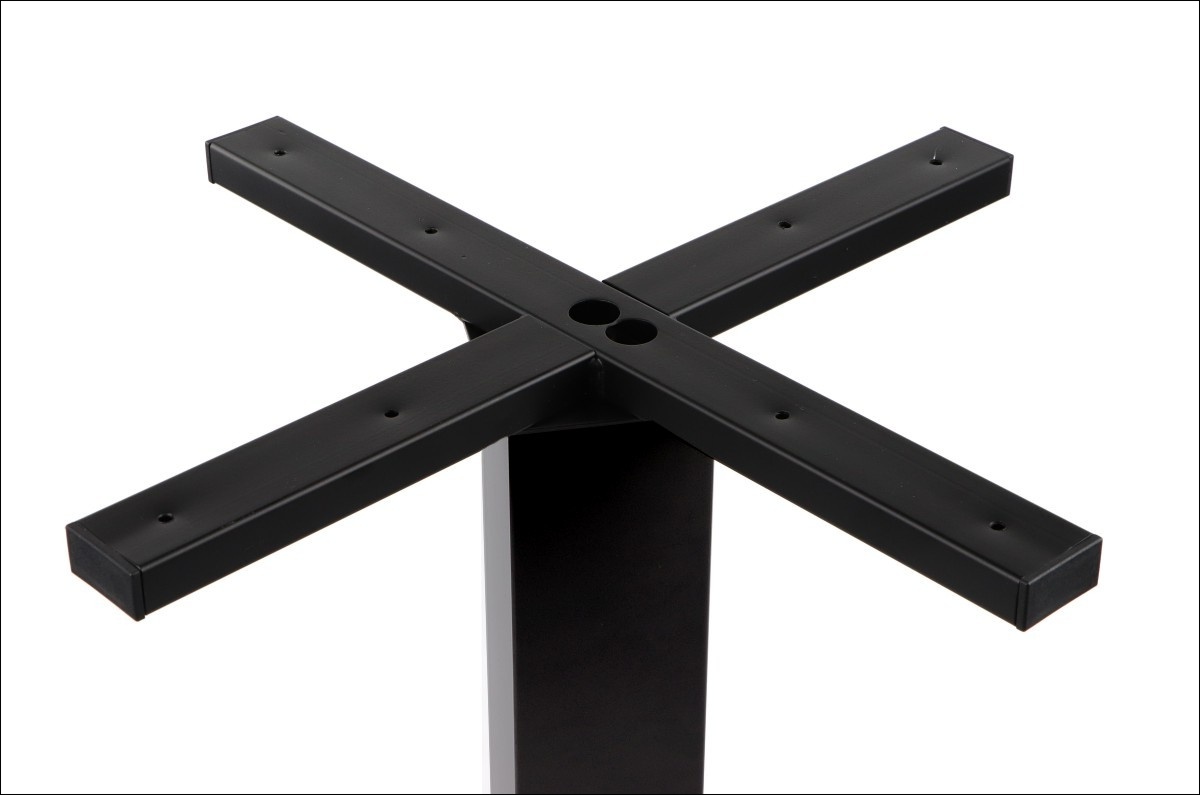

MOUNTING PLATE

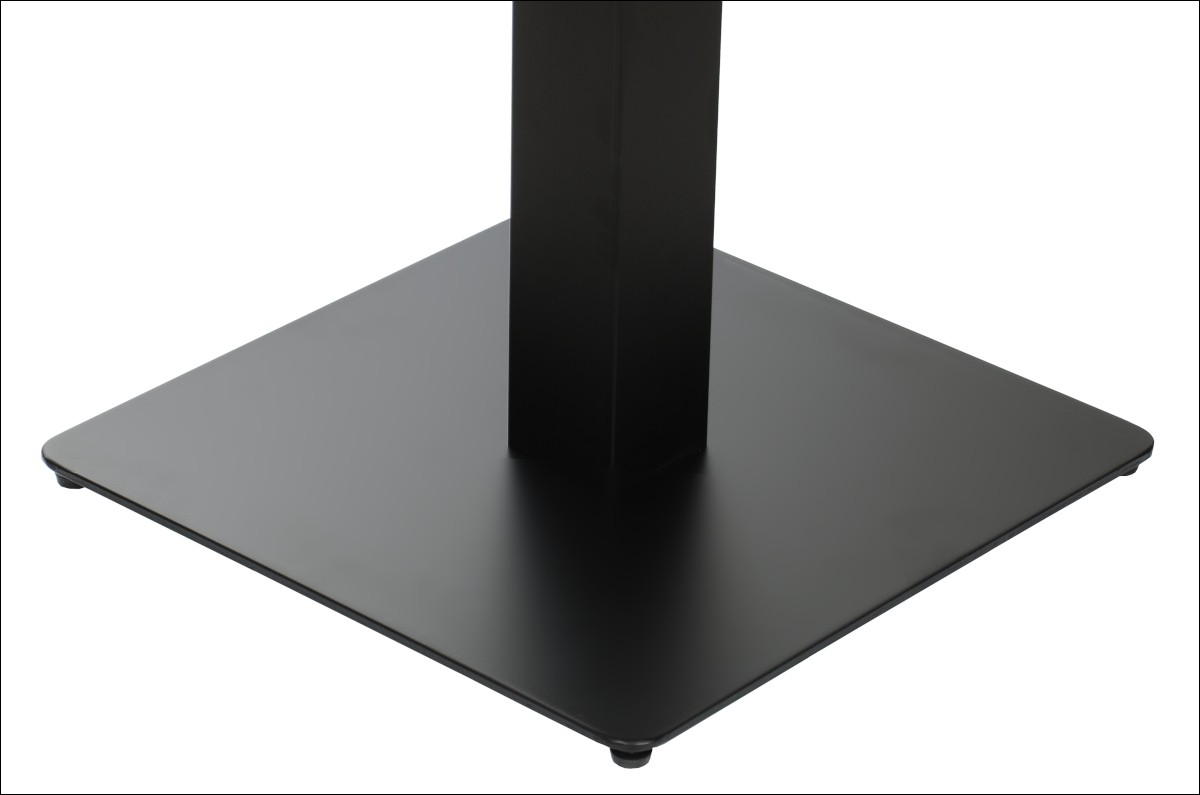

BOTTOM PLATE
