EAN-Code

40x40 cm5903917403313
Bodenplatte - Abmessungen:ca. 40 cm
Bodenplatte - Form:Quadrat
Höhe:68 - 74 cm
Farbe:schwarz
40x40 cm1 Produkt in 2 Paketen 10,4kg 44x44x5cm
1,5kg 8x8x75cm

VarianteNettopreis EinzelhandelVerfügbare Menge
40x40 cm (#332-329)45.75 EURVERFÜGBAR
Nächste erwartete Lieferung:

Sie können noch maximal 100 Stk. von einem Produkt zur Bestellung hinzufügen

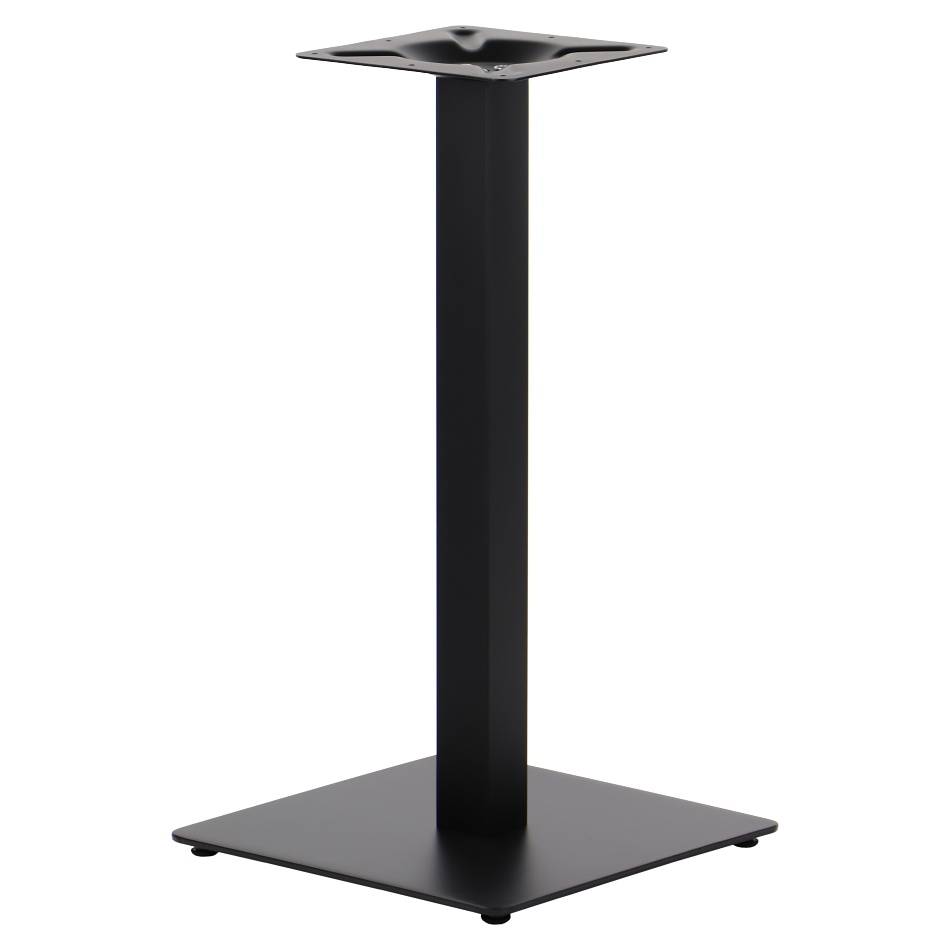

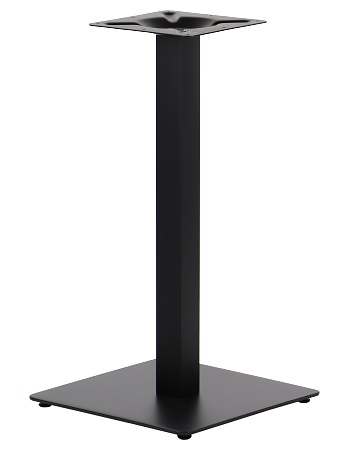

TABLE BASE

SH-5002-1/60/B

40x40 cm, height 72 cm

BASIC FEATURES

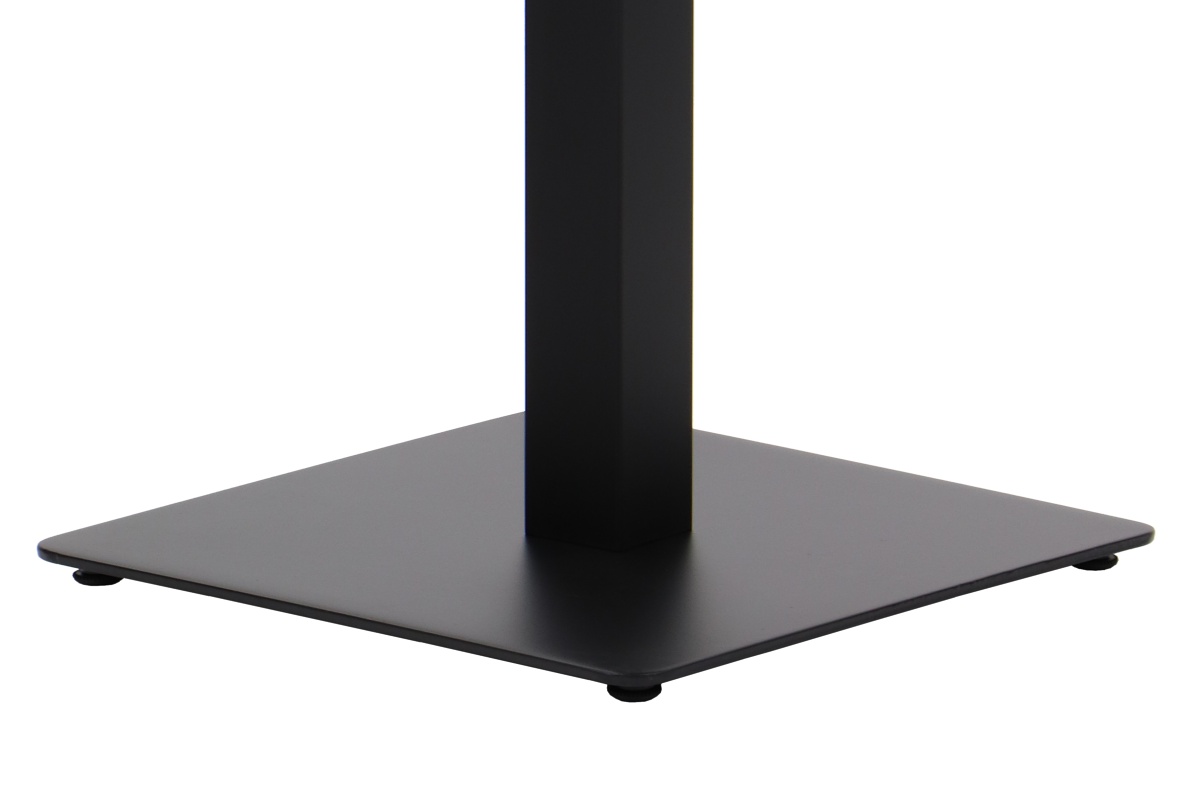

  • bottom plate dimensions 40x40 cm
  • bottom plate made of 7 mm thick steel sheet, powder coated
  • leg made of powder coated steel, cross-section 60x60, wall thickness 1,2 mm
  • mounting plate made of 25x25x0,3 cm pressed steel sheet
  • mouting plate with 8 holes, 5 mm diameter

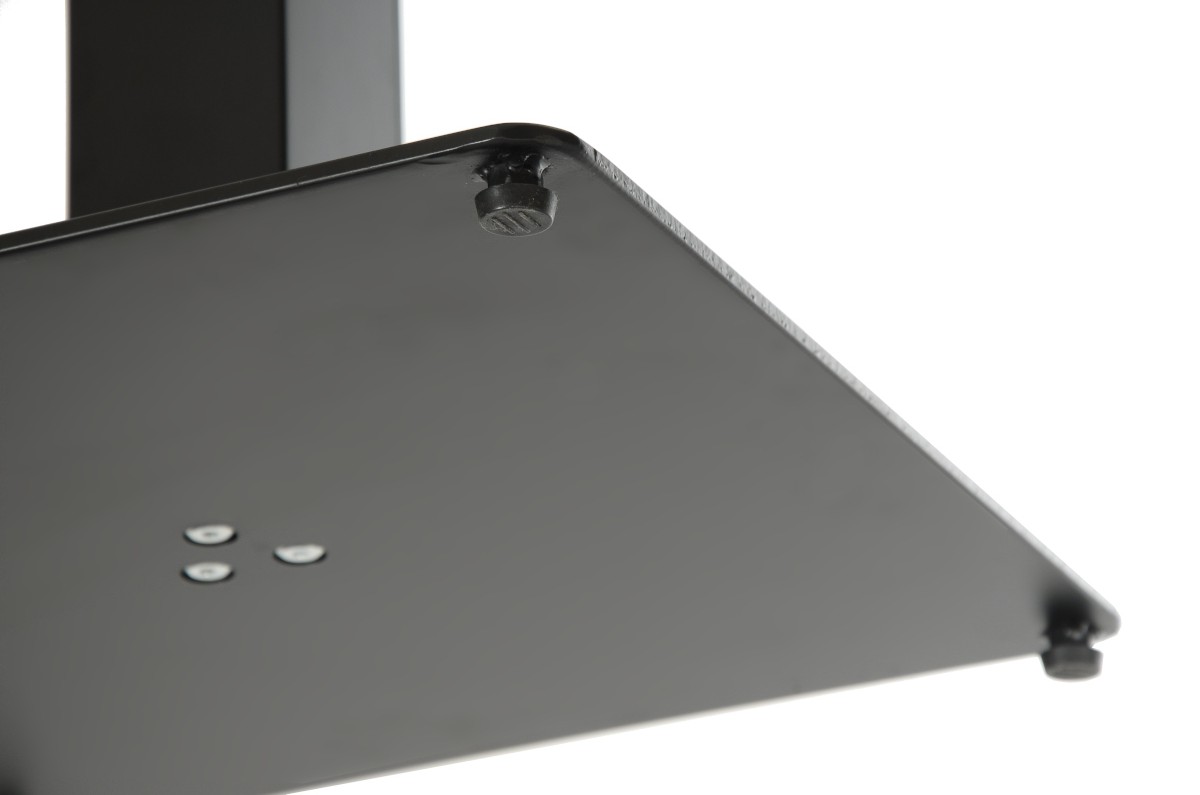

  • adjustable feet
  • screwed base, delivered in parts

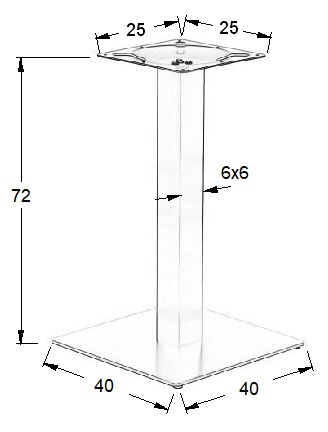

DIMENSIONS

DIMENSIONS ACCURACY: 1 CM
SUBJECT TO CHANGE DIMENSIONS TO THE EXTENT WHICH WOULD NOT CAUSE IMPORTANT CHANGES OF PRODUCT CHARACTERISTIC.

MOUNTING PLATE

BOTTOM PLATE

# Bottom plate dimensions Maximum tabletop size
metal bottom plate (steel, cast iron, etc.) or with steel/cast iron bottom plate weight with plastic bottom plate weight
1 ⌀ 40 cm ⌀ 60 cm ⌀ 55 cm
2 ⌀ 45 cm ⌀ 70 cm ⌀ 65 cm
3 ⌀ 50 cm ⌀ 80 cm ⌀ 75 cm
4 ⌀ 55 cm ⌀ 90 cm ⌀ 80 cm
5 40x40 cm 60x60 cm 60x60 cm
6 45x45 cm 70x70 cm 65x65 cm
7 50x50 cm 80x80 cm 75x75 cm
8 55x55 cm 90x90 cm 80x80 cm
