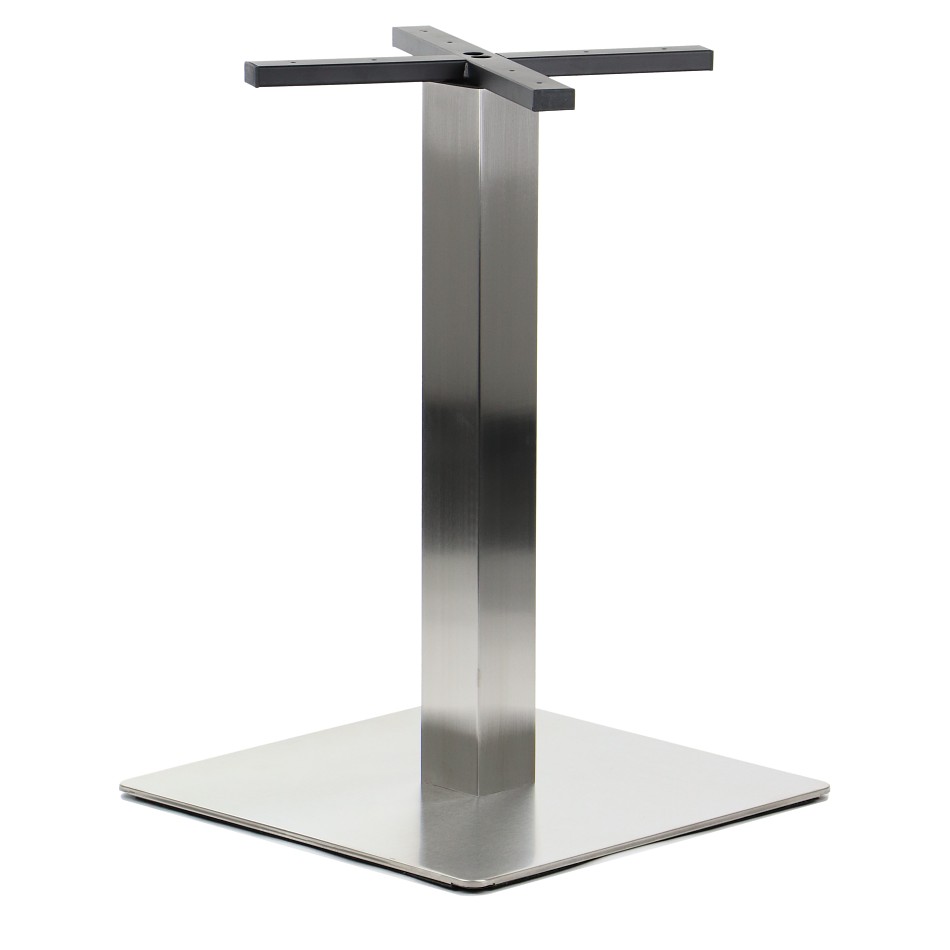

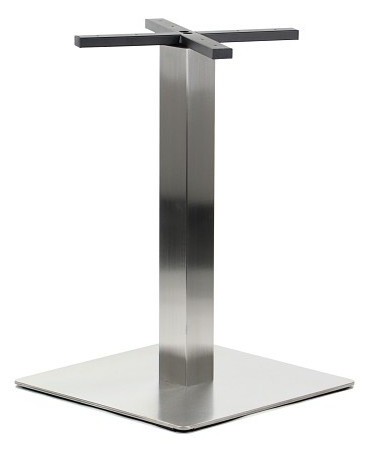

TABLE BASE

SH-3002-6/S

50x50 cm, height 72,5 cm

BASIC FEATURES

• bottom plate dimension 50x50 cm
• bottom plate steel thickness 7 mm, covered with polished stainless steel
• leg made of brushed stainless steel, cross-section 80x80, wall thickness 1,2 mm
• mounting plate made of steel 4,2 cm profiles, dimension 45x45 cm
• mouting plate with 8 holes, 5 mm diameter

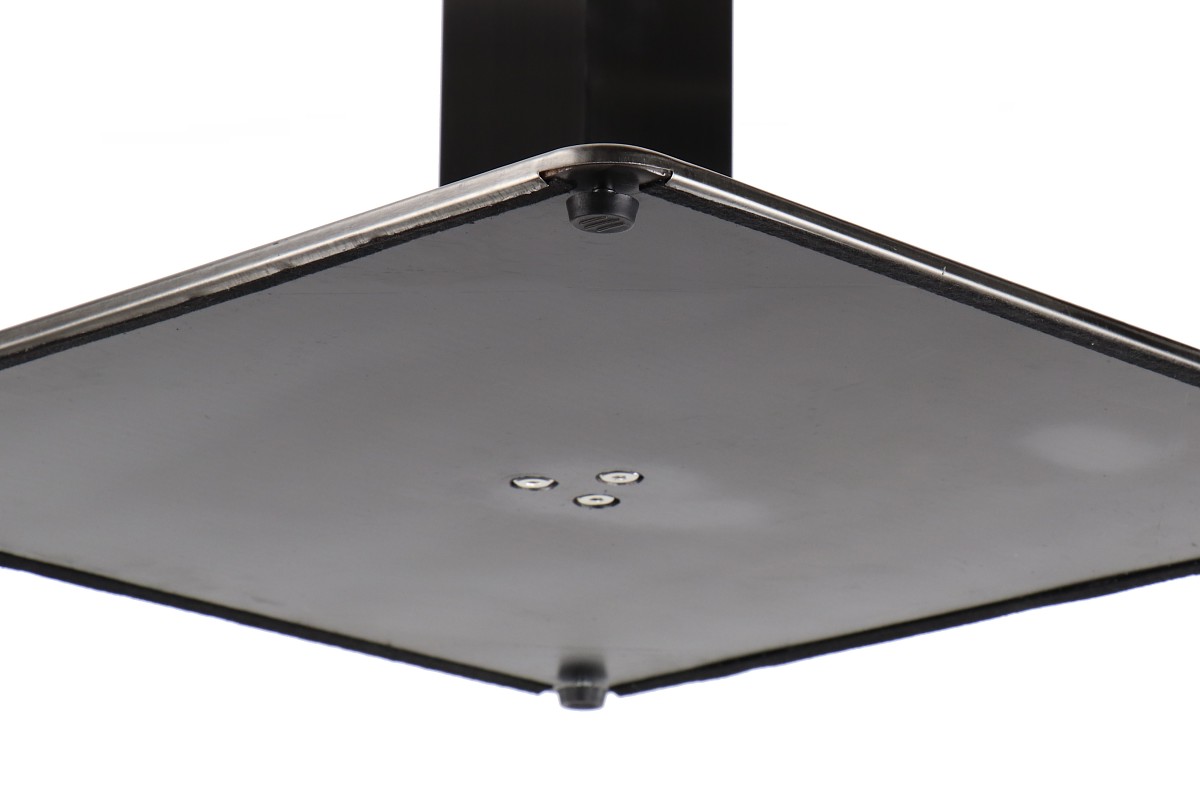

• adjustable feet
• screwed base, delivered in parts
• stainless steel, type 201 - for dry indoor use
• weight: 17,9 kg

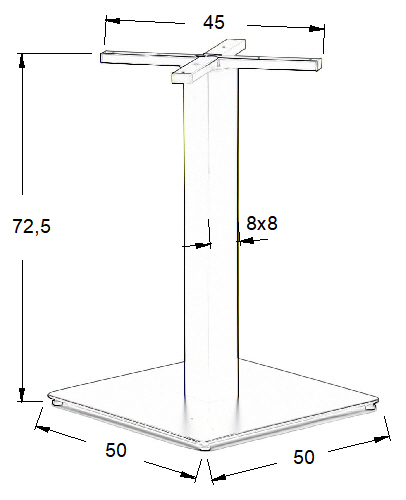

DIMENSIONS

DIMENSIONS ACCURACY: 1 CM
SUBJECT TO CHANGE DIMENSIONS TO THE EXTENT WHICH WOULD NOT CAUSE IMPORTANT CHANGES OF PRODUCT CHARACTERISTIC.

MOUNTING PLATE

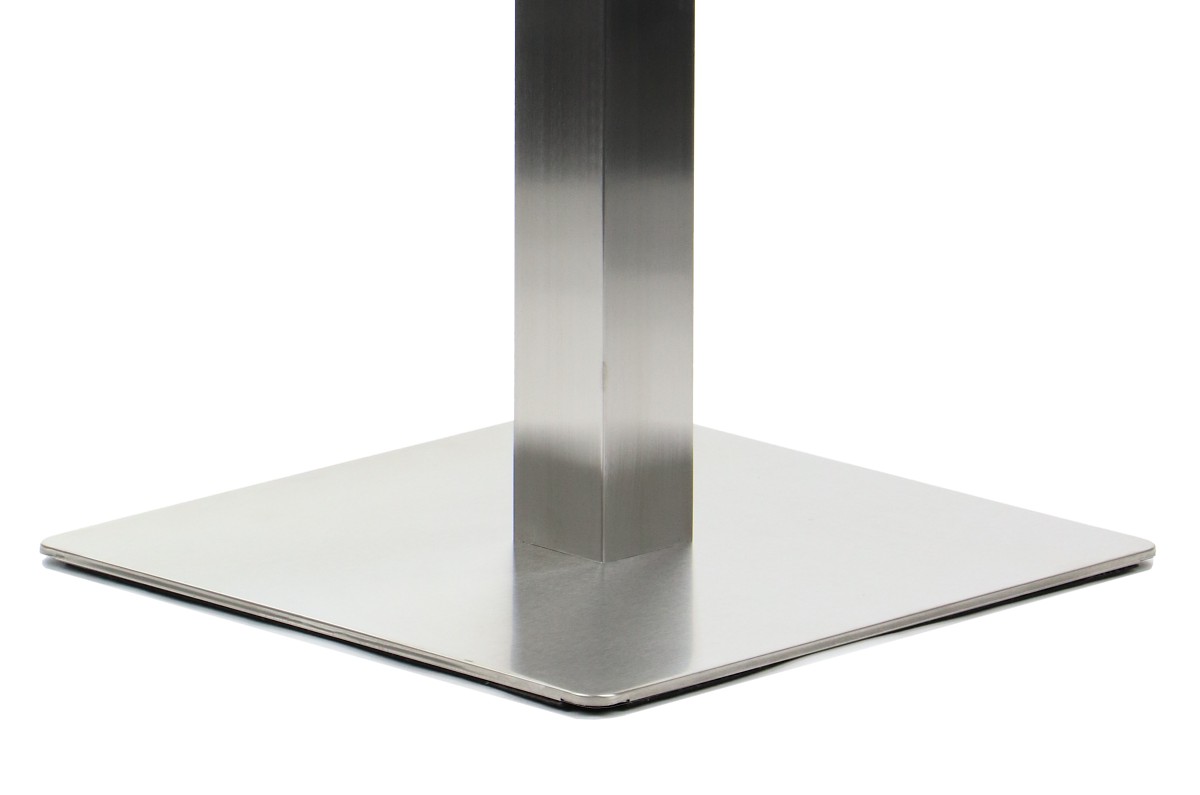

BOTTOM PLATE

---

#	Bottom plate dimensions	Maximum tabletop size
		metal bottom plate (steel, cast iron, etc.) or with steel/cast iron bottom plate weight	with plastic bottom plate weight
1	⌀ 40 cm	⌀ 60 cm	⌀ 55 cm
2	⌀ 45 cm	⌀ 70 cm	⌀ 65 cm
3	⌀ 50 cm	⌀ 80 cm	⌀ 75 cm
4	⌀ 55 cm	⌀ 90 cm	⌀ 80 cm
5	40x40 cm	60x60 cm	60x60 cm
6	45x45 cm	70x70 cm	65x65 cm
7	50x50 cm	80x80 cm	75x75 cm
8	55x55 cm	90x90 cm	80x80 cm
