вариант	Розничная цена нетто	в нпличии
∅ 43 cm (#303-307)	48.05 EUR	В НАЛИЧИИ Следующая ожидаемая доставка:

в заказ можно добавить максимально 100шт. одного товара

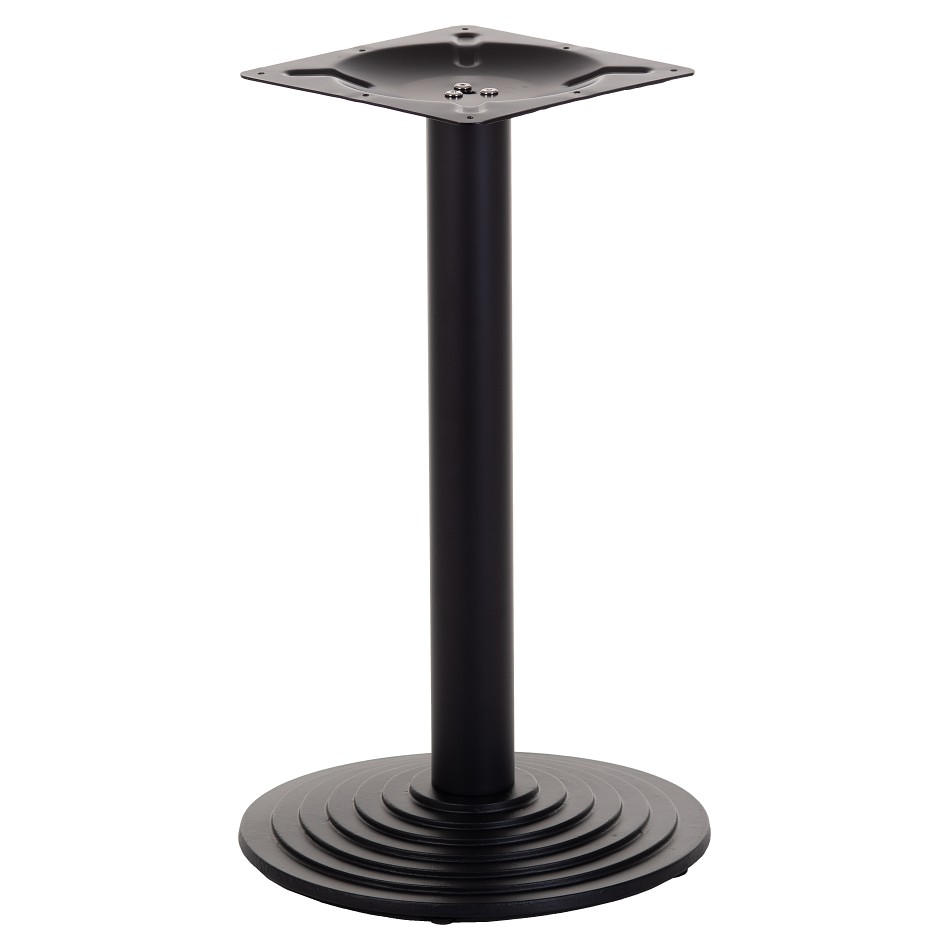

CAST IRON TABLE BASE

SH-5005-1/B

diameter 43 cm, height 72 cm

BASIC FEATURES

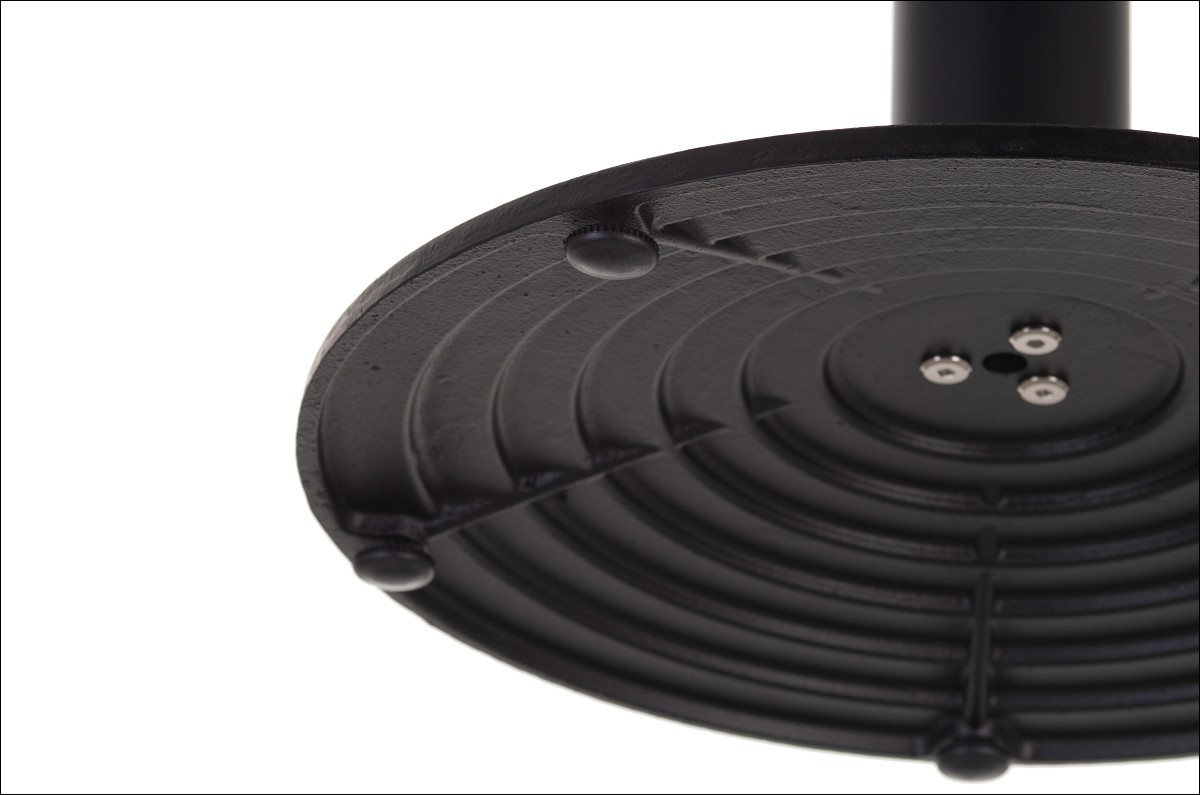

cast iron botton plate, diameter 43 cm leg made of powder coated steel, 75 mm cross-section, wall thickness 1,2 mm mounting plate made of 30x30 cm pressed steel sheet, thickness 3 mm mouting plate with 8 holes, 5 mm diameter adjustable feet screwed base, delivered in parts weight: 10,5 kg
DIMENSIONS
DIMENSIONS ACCURACY: 1 CM SUBJECT TO CHANGE DIMENSIONS TO THE EXTENT WHICH WOULD NOT CAUSE IMPORTANT CHANGES OF PRODUCT CHARACTERISTIC.

MOUNTING PLATE

30x30 cm

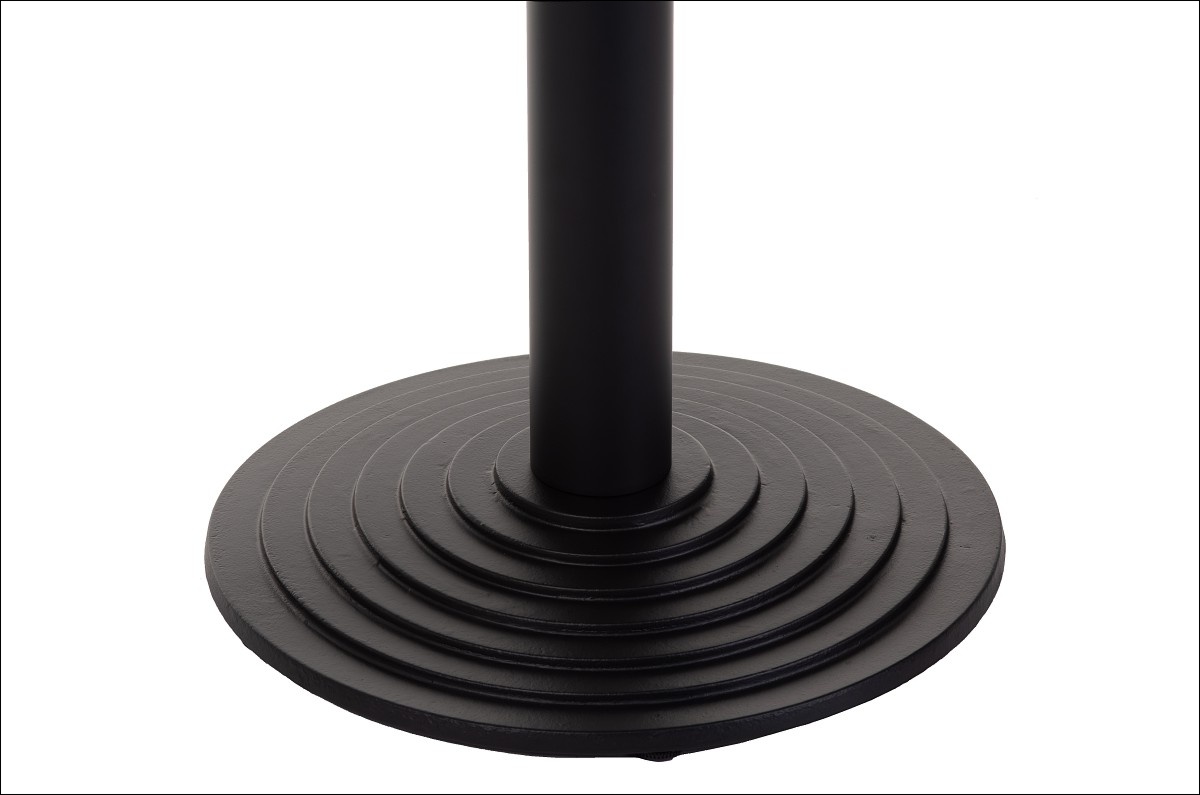

BOTTOM PLATE

#	Bottom plate dimensions	Maximum tabletop size
#	Bottom plate dimensions	metal bottom plate (steel, cast iron, etc.) or with steel/cast iron bottom plate weight	with plastic bottom plate weight
1	⌀ 40 cm	⌀ 60 cm	⌀ 55 cm
2	⌀ 45 cm	⌀ 70 cm	⌀ 65 cm
3	⌀ 50 cm	⌀ 80 cm	⌀ 75 cm
4	⌀ 55 cm	⌀ 90 cm	⌀ 80 cm
5	40x40 cm	60x60 cm	60x60 cm
6	45x45 cm	70x70 cm	65x65 cm
7	50x50 cm	80x80 cm	75x75 cm
8	55x55 cm	90x90 cm	80x80 cm
