EAN-Code

∅ 45 cm5903917403283
Bodenplatte - Abmessungen:ca. 45 cm
Bodenplatte - Form:Kreis
Höhe:105 - 115 cm
Farbe:schwarz
∅ 45 cm1 Produkt in 2 Paketen 10,7kg 48x48x4cm
2,4kg 9x9x110cm

VarianteNettopreis EinzelhandelVerfügbare Menge
∅ 45 cm (#293-295)54.94 EURVERFÜGBAR
Nächste erwartete Lieferung:

Sie können noch maximal 100 Stk. von einem Produkt zur Bestellung hinzufügen

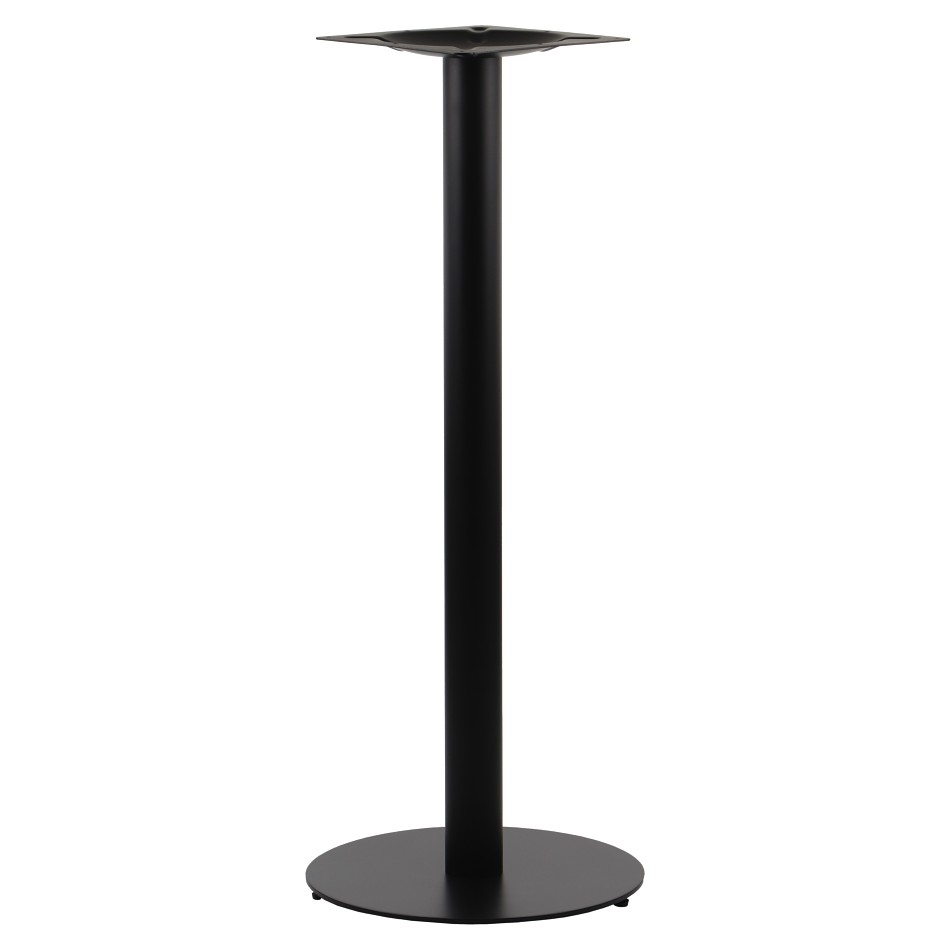

TABLE BASE

SH-5001-5/H/B

diameter 45 cm, height 111 cm

BASIC FEATURES
  • height 110 cm
  • bottom plate diameter 45 cm
  • bottom plate made of 7 mm thick steel sheet, powder coated
  • leg made of powder coated steel, 1,2 mm thick, diameter 75 mm
  • mounting plate made of 30x30x0,3 cm pressed steel sheet
  • mouting plate with 8 holes, 5 mm diameter

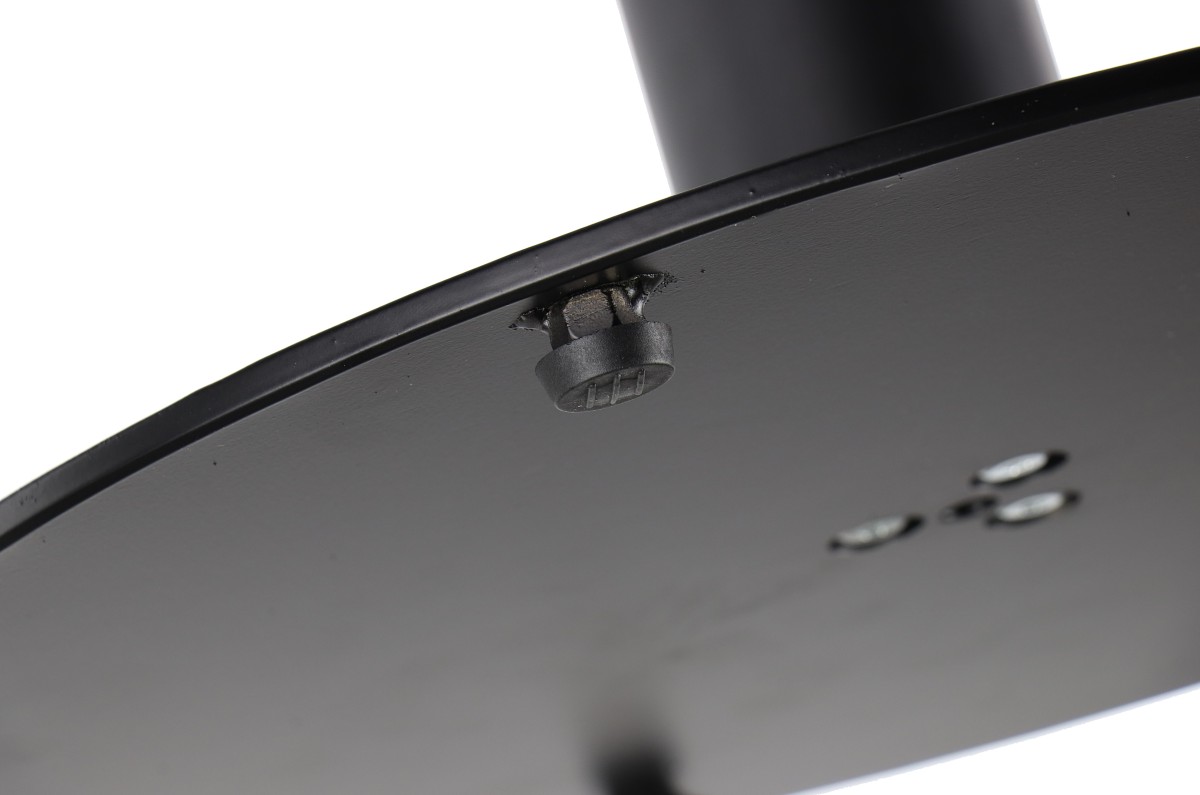

  • adjustable feet
  • screwed base, delivered in parts
  • weight: 13 kg

DIMENSIONS

DIMENSIONS ACCURACY: 1 CM
SUBJECT TO CHANGE DIMENSIONS TO THE EXTENT WHICH WOULD NOT CAUSE IMPORTANT CHANGES OF PRODUCT CHARACTERISTIC.

MOUNTING PLATE

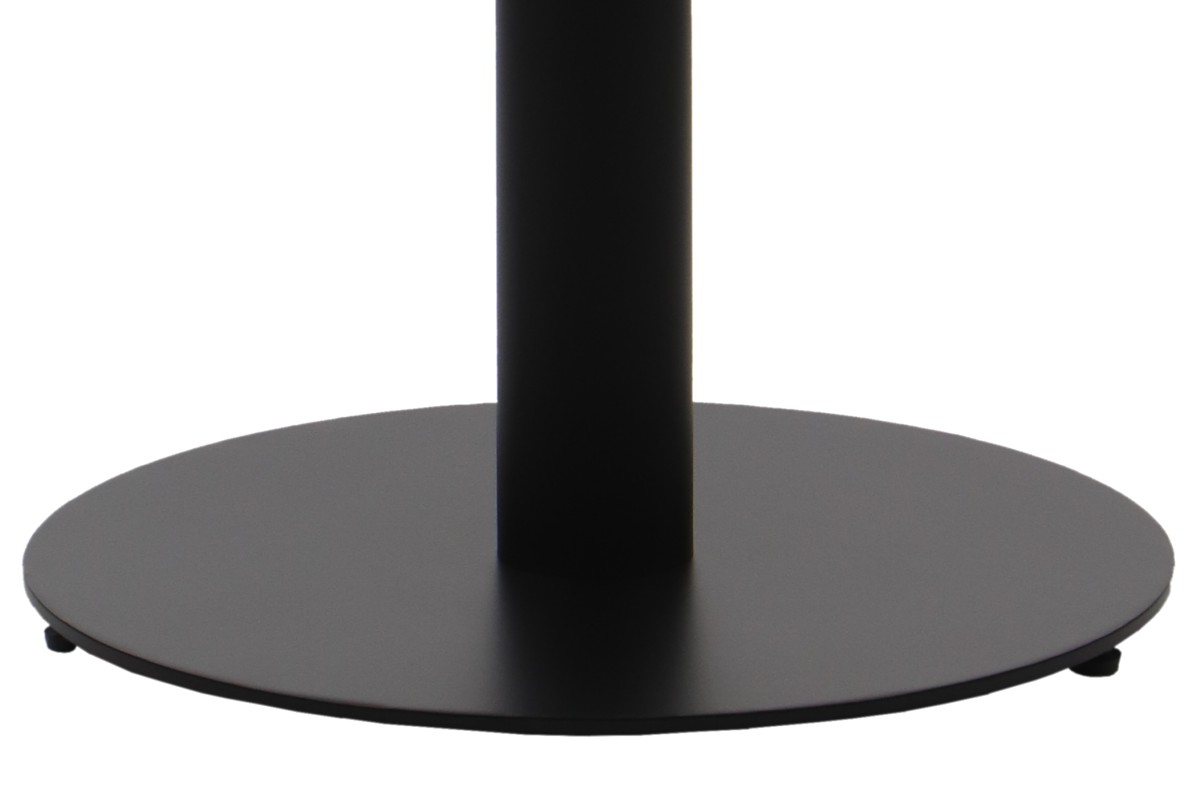

BOTTOM PLATE



# Bottom plate dimensions Maximum tabletop size
metal bottom plate (steel, cast iron, etc.) or with steel/cast iron bottom plate weight with plastic bottom plate weight
1 ⌀ 40 cm ⌀ 60 cm ⌀ 55 cm
2 ⌀ 45 cm ⌀ 70 cm ⌀ 65 cm
3 ⌀ 50 cm ⌀ 80 cm ⌀ 75 cm
4 ⌀ 55 cm ⌀ 90 cm ⌀ 80 cm
5 40x40 cm 60x60 cm 60x60 cm
6 45x45 cm 70x70 cm 65x65 cm
7 50x50 cm 80x80 cm 75x75 cm
8 55x55 cm 90x90 cm 80x80 cm
