EAN-Code

∅ 61 cm5903917403450
Höhe:68 - 74 cm
Bodenplatte - Abmessungen:ca. 60 cm
Bodenplatte - Form:die Kreuzritter
∅ 61 cm1 Produkt in 1 Paket 5,5kg 64x54x9cm

VarianteNettopreis EinzelhandelVerfügbare Menge
∅ 61 cm (#286-288)41.15 EURVERFÜGBAR

Sie können noch maximal 100 Stk. von einem Produkt zur Bestellung hinzufügen

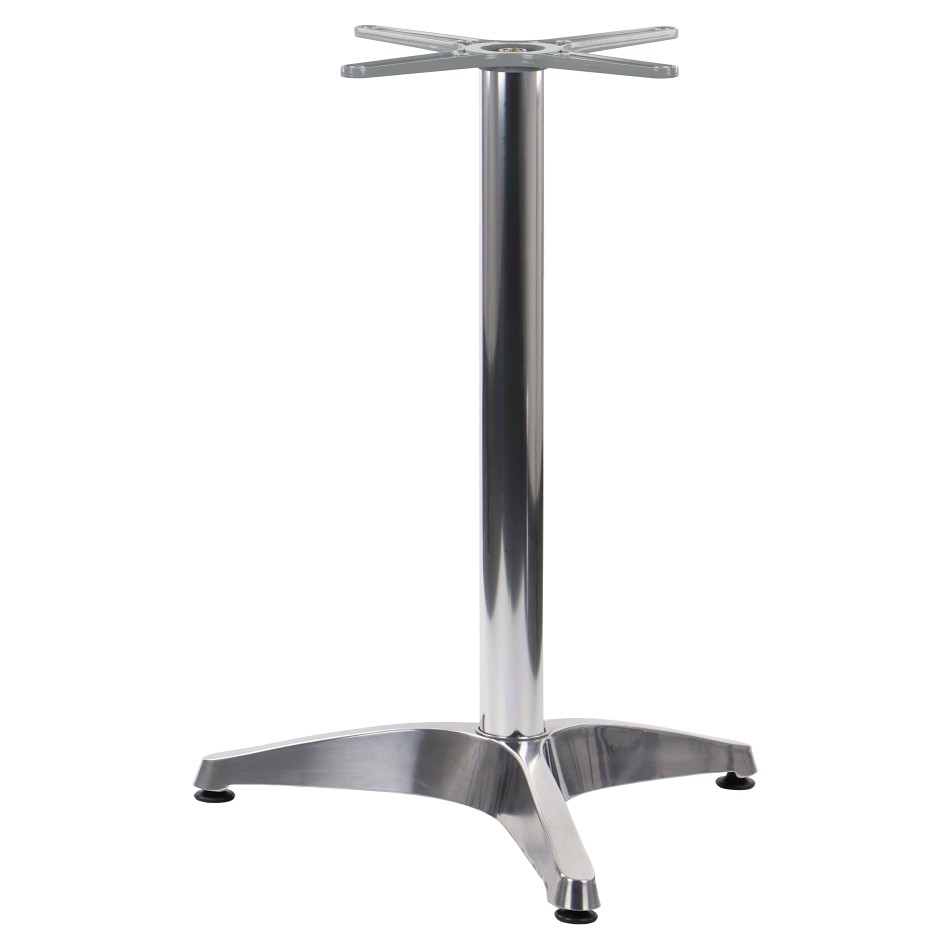

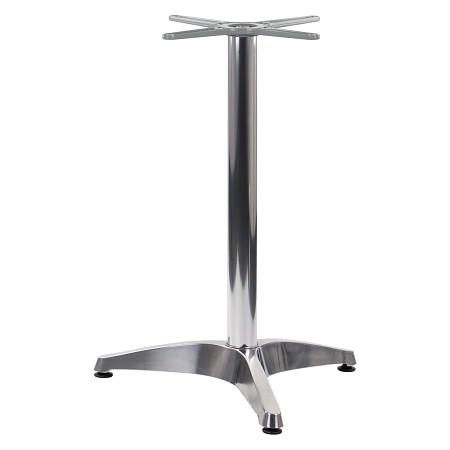

ALUMINUM TABLE BASE

SH-7002/A

diameter 61 cm, height 71,5 cm

BASIC FEATURES
  • base made entirely of aluminum
  • bottom plate diameter 61 cm with 3 kg cast iron weight
  • leg made of aluminum, 1,2 mm thick, diameter 60 mm
  • mounting plate made of aluminum, dimensions: 40x40 cm
  • mouting plate with 8 holes, 6 mm diameter

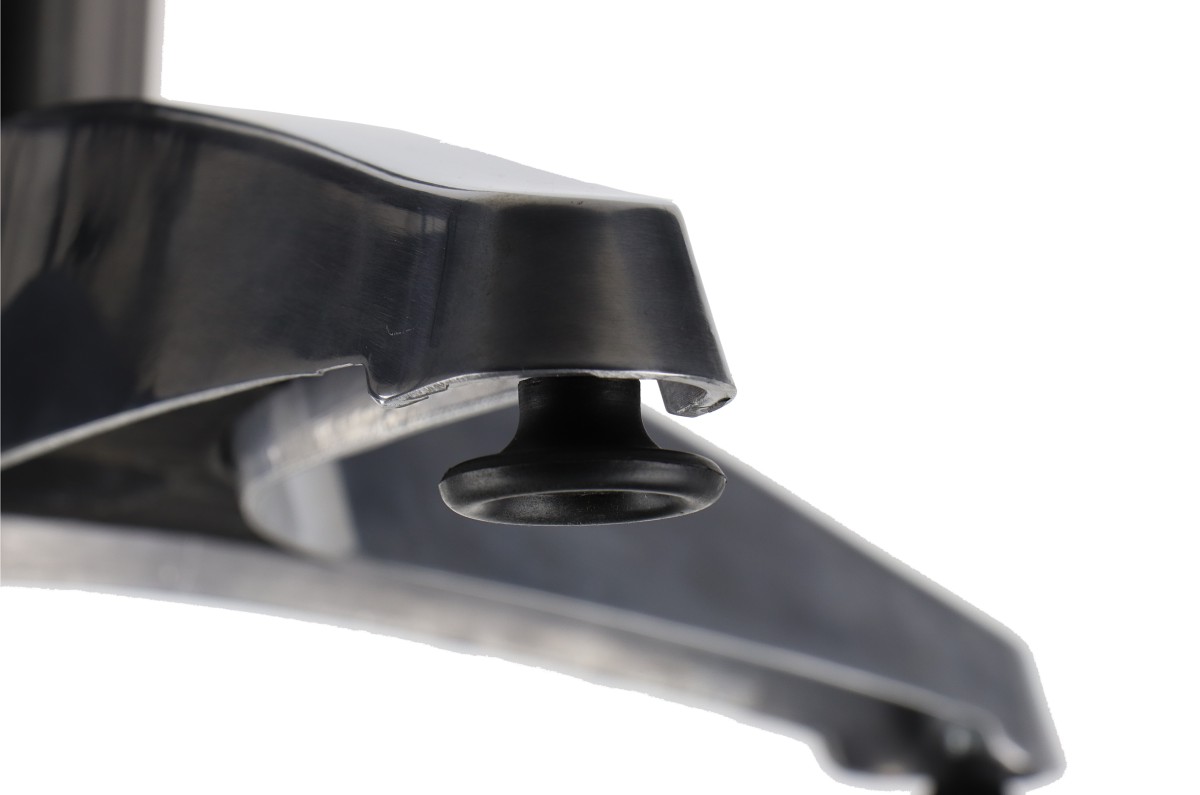

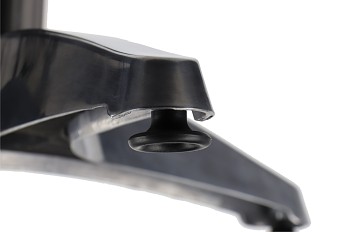

  • adjustable feet
  • screwed base, delivered in parts
  • weight: 5,5 kg

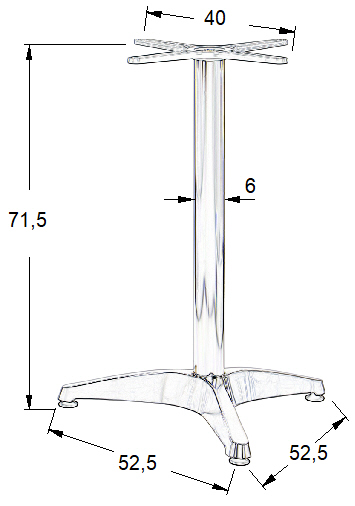

DIMENSIONS

DIMENSIONS ACCURACY: 1 CM
SUBJECT TO CHANGE DIMENSIONS TO THE EXTENT WHICH WOULD NOT CAUSE IMPORTANT CHANGES OF PRODUCT CHARACTERISTIC.

MOUNTING PLATE

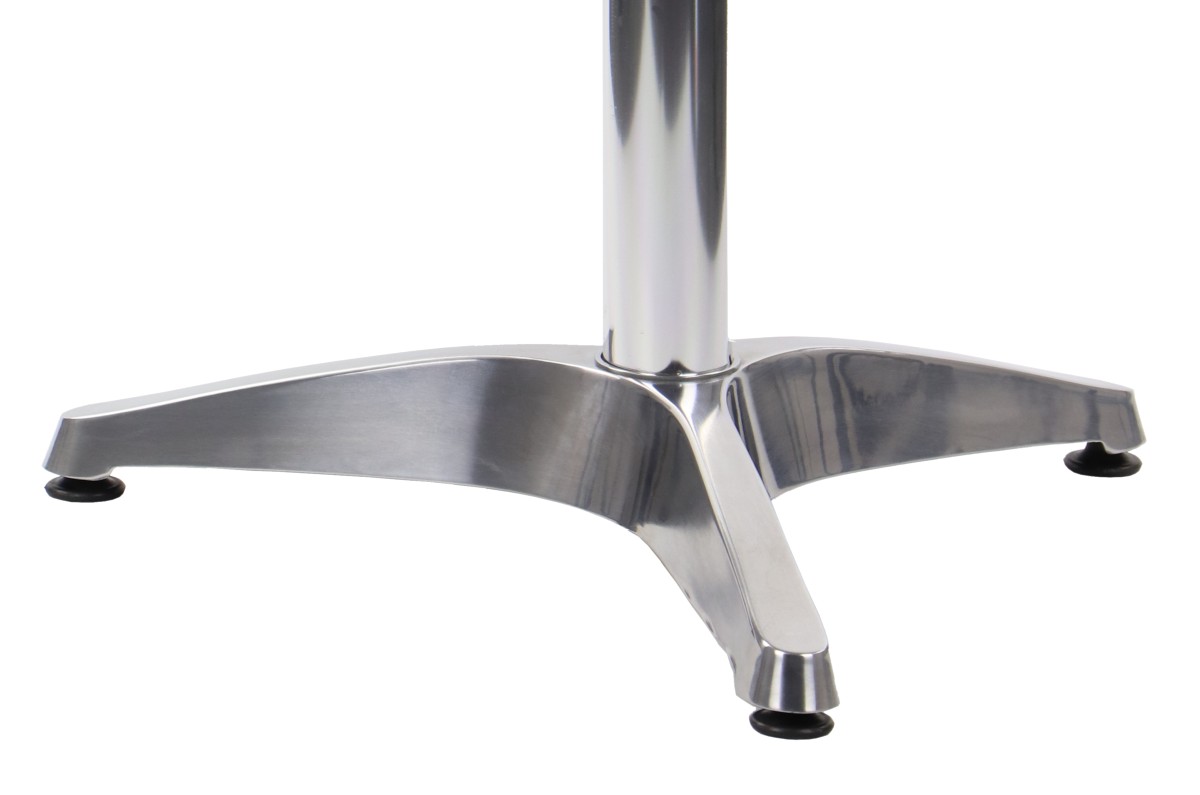

BOTTOM PLATE



# Bottom plate dimensions Maximum tabletop size
metal bottom plate (steel, cast iron, etc.) or with steel/cast iron bottom plate weight with plastic bottom plate weight
1 ⌀ 40 cm ⌀ 60 cm ⌀ 55 cm
2 ⌀ 45 cm ⌀ 70 cm ⌀ 65 cm
3 ⌀ 50 cm ⌀ 80 cm ⌀ 75 cm
4 ⌀ 55 cm ⌀ 90 cm ⌀ 80 cm
5 40x40 cm 60x60 cm 60x60 cm
6 45x45 cm 70x70 cm 65x65 cm
7 50x50 cm 80x80 cm 75x75 cm
8 55x55 cm 90x90 cm 80x80 cm
