Assembly instruction
Placeholder

EAN code

45x45 cm5903917403436
Height:68 - 74 cm
Bottom plate - dimensions:approx. 45 cm
Bottom plate - shape:square
45x45 cm1 product in 2 boxes 10,6kg 48x48x9cm
2kg 10x10x70cm

OptionRetail net priceIn stock
45x45 cm (#269-269)57.24 EURIN STOCK
Next expected delivery:

Maximum of 100 pieces of same product in one order

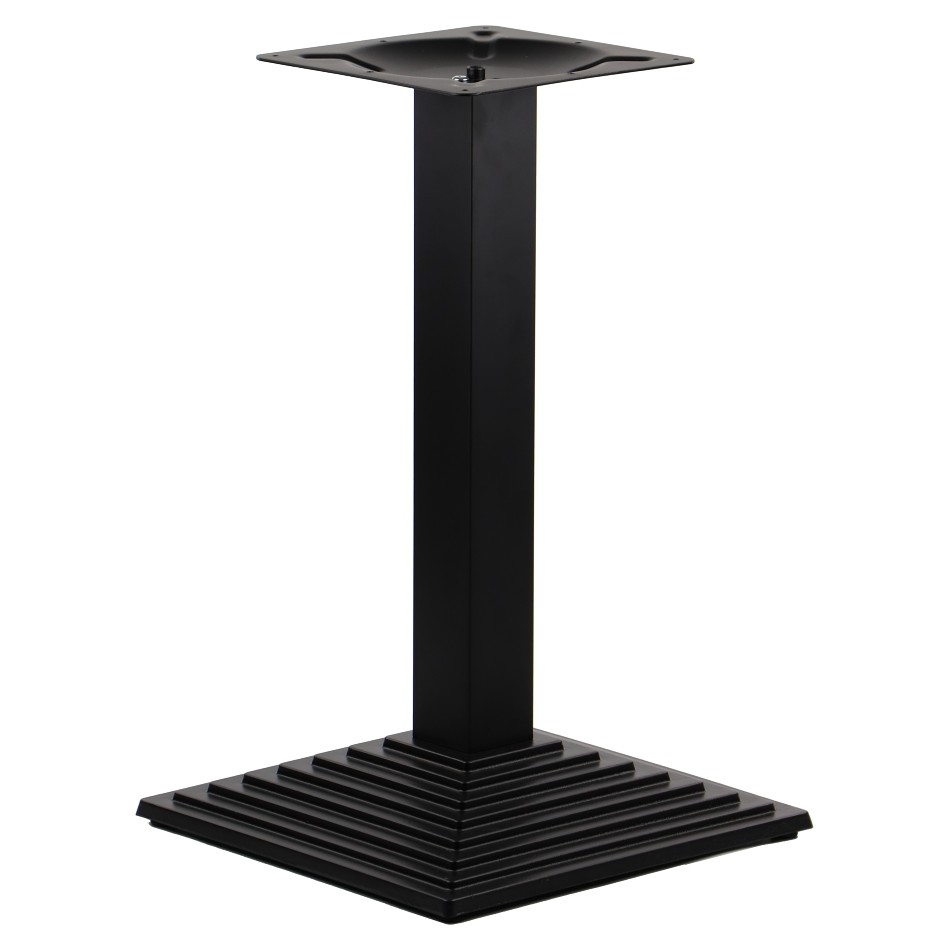

TABLE BASE

SH-5014-6/B

44,5x44,5 cm, height 72,5 cm

BASIC FEATURES
  • bottom plate dimensions 44,5x44,5 cm

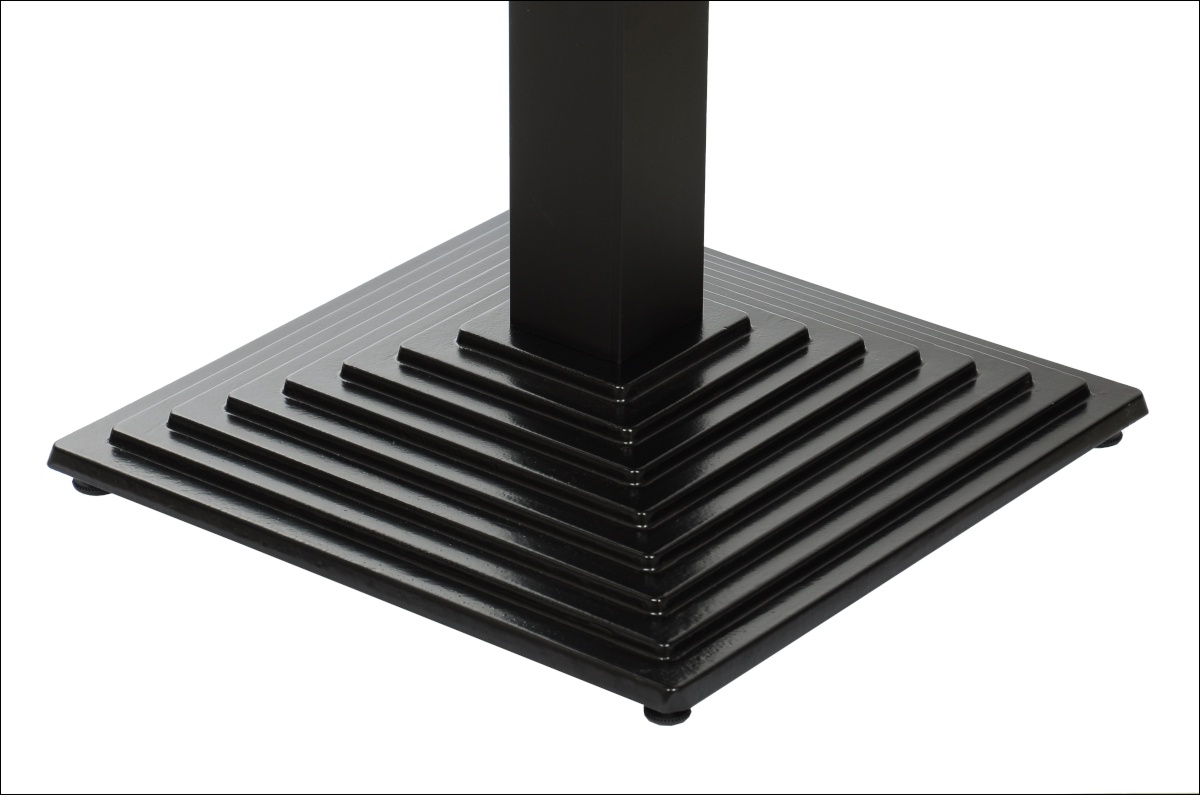

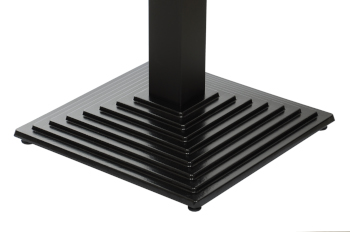

  • bottom plate made of cast iron
  • leg made of powder coated steel, cross-section 80x80 mm, wall thickness 1,2 mm
  • mounting plate made of 30x30x0,3 cm pressed steel sheet
  • mouting plate with 8 holes, 5 mm diameter

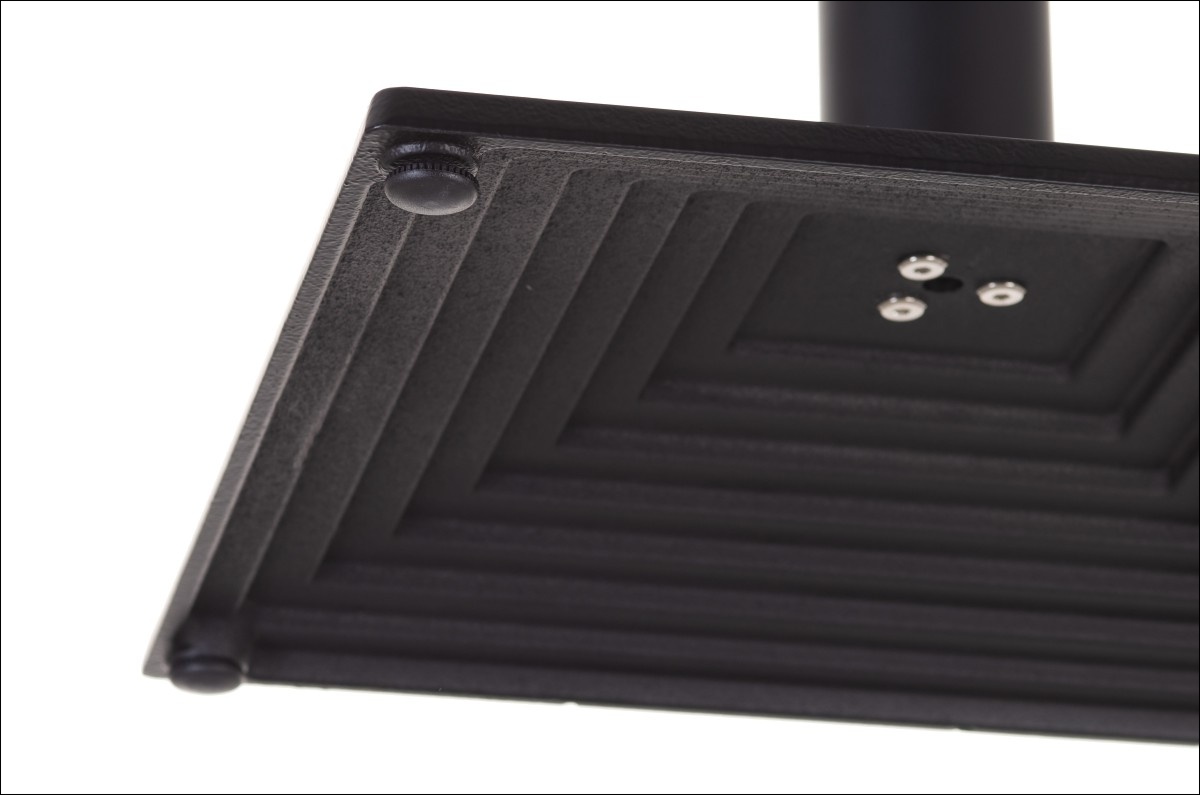

  • adjustable feet
  • screwed base, delivered in parts
  • weight: 12,4 kg

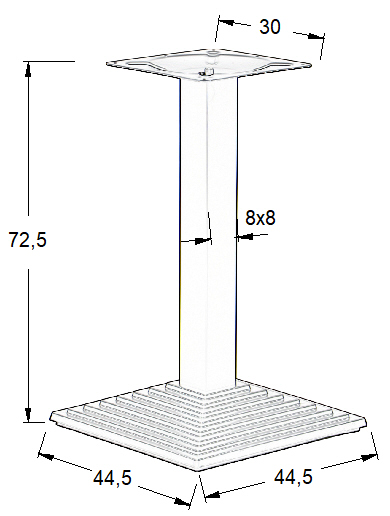

DIMENSIONS

DIMENSIONS ACCURACY: 1 CM
SUBJECT TO CHANGE DIMENSIONS TO THE EXTENT WHICH WOULD NOT CAUSE IMPORTANT CHANGES OF PRODUCT CHARACTERISTIC.

MOUNTING PLATE

BOTTOM PLATE

# Bottom plate dimensions Maximum tabletop size
metal bottom plate (steel, cast iron, etc.) or with steel/cast iron bottom plate weight with plastic bottom plate weight
1 dia. 40 cm dia. 60 cm dia. 55 cm
2 dia. 45 cm dia. 70 cm dia. 65 cm
3 dia. 50 cm dia. 80 cm dia. 75 cm
4 dia. 55 cm dia. 90 cm dia. 80 cm
5 40x40 cm 60x60 cm 60x60 cm
6 45x45 cm 70x70 cm 65x65 cm
7 50x50 cm 80x80 cm 75x75 cm
8 55x55 cm 90x90 cm 80x80 cm
9 71x71 cm 120x120 cm or dia. 130 cm ---
