EAN-Code

70x40 cm5903917403177
Bodenplatte - Abmessungen:70x40 cm
Bodenplatte - Form:Rechteck
Höhe:68 - 74 cm
Farbe:schwarz
70x40 cm1 Produkt in 2 Paketen 17,6kg 72x42x3cm
3,6kg 75x18x10cm

VarianteNettopreis EinzelhandelVerfügbare Menge
70x40 cm (#261-245)76.78 EURVERFÜGBAR
Nächste erwartete Lieferung:

Sie können noch maximal 100 Stk. von einem Produkt zur Bestellung hinzufügen

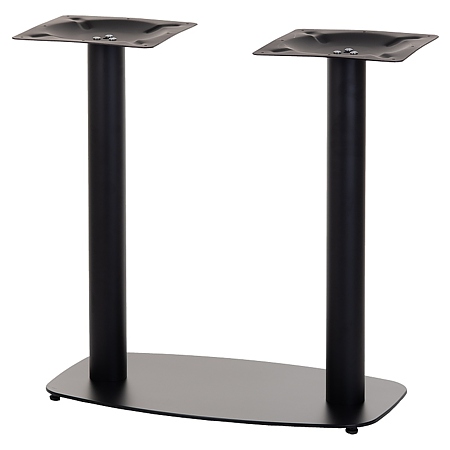

TABLE BASE

SH-3052/B

70x40 cm, height 73 cm

BASIC FEATURES
  • bottom plate dimensions 70x40 cm
  • bottom plate made of 7 mm pressed steel sheed, powder coated
  • two legs made of powder coated steel, 1,2 mm thick, diameter 75 mm
  • mounting plates made of 30x30x0,3 cm pressed steel sheet (both)
  • mouting plates with 8 holes, 5 mm diameter
  • adjustable feet
  • screwed base, delivered in parts
  • weight: 21,2 kg

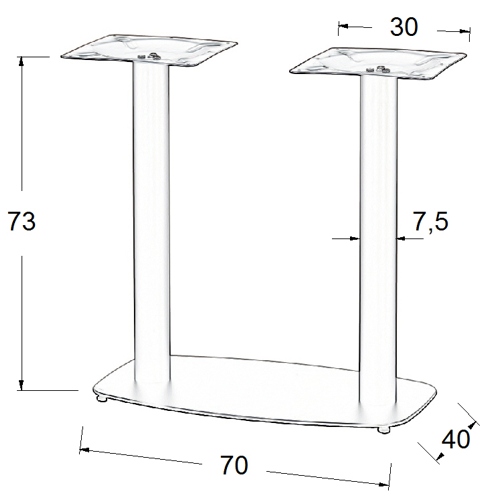

DIMENSIONS

DIMENSIONS ACCURACY: 1 CM
SUBJECT TO CHANGE DIMENSIONS TO THE EXTENT WHICH WOULD NOT CAUSE IMPORTANT CHANGES OF PRODUCT CHARACTERISTIC.

MOUNTING PLATE

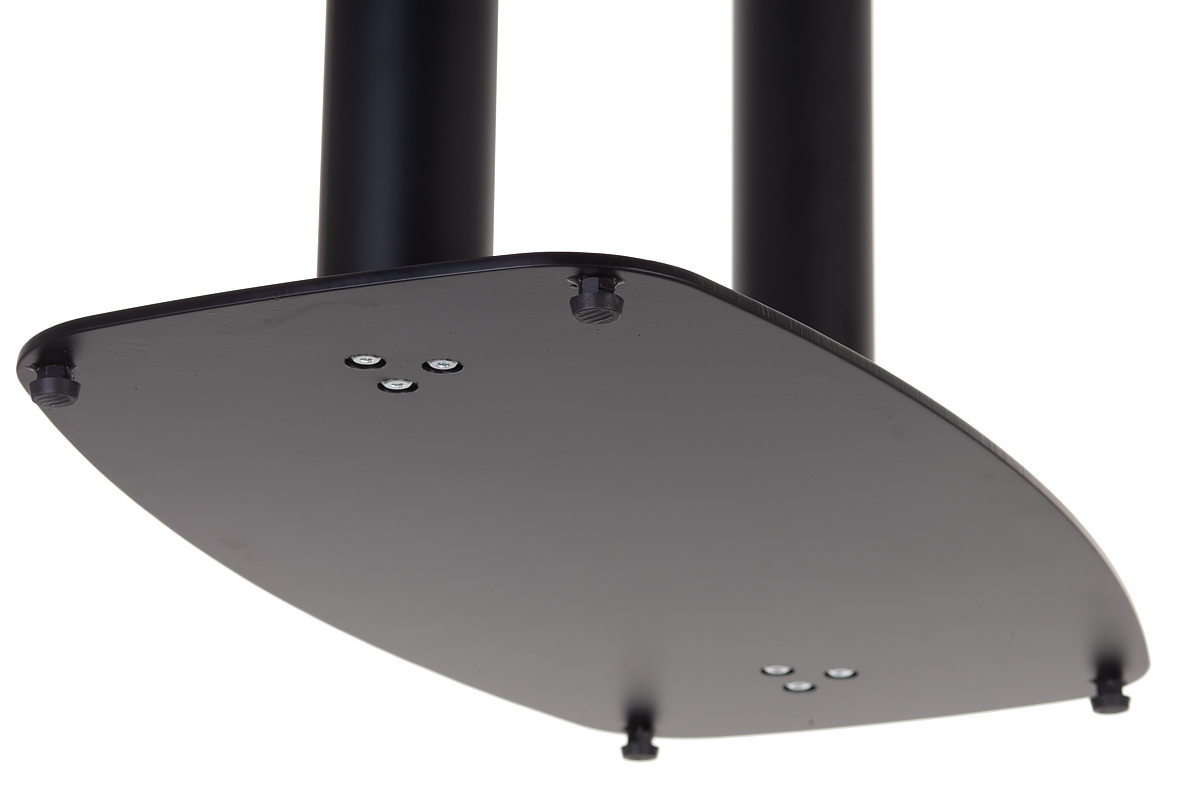

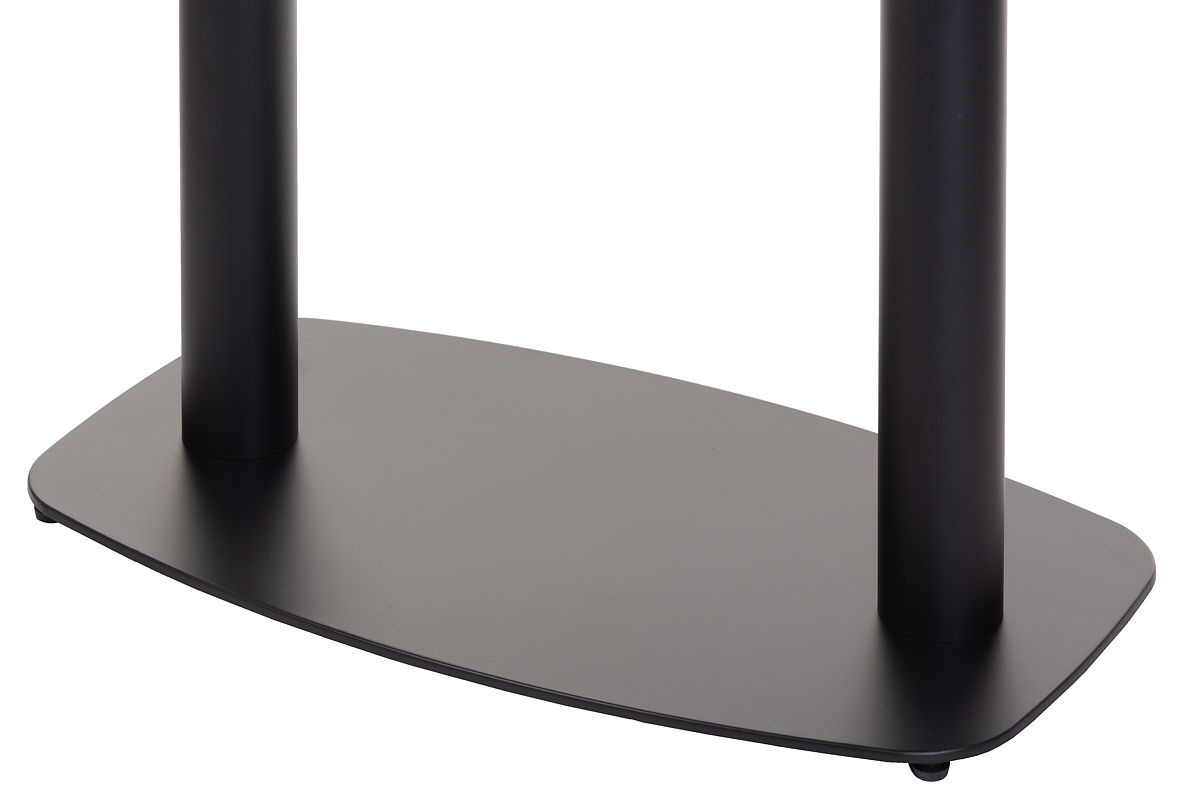

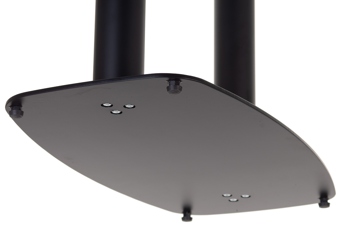

BOTTOM PLATE

# Bottom plate dimensions Maximum tabletop size
metal bottom plate (steel, cast iron, etc.) or with steel/cast iron bottom plate weight with plastic bottom plate weight
1 ⌀ 40 cm ⌀ 60 cm ⌀ 55 cm
2 ⌀ 45 cm ⌀ 70 cm ⌀ 65 cm
3 ⌀ 50 cm ⌀ 80 cm ⌀ 75 cm
4 ⌀ 55 cm ⌀ 90 cm ⌀ 80 cm
5 40x40 cm 60x60 cm 60x60 cm
6 45x45 cm 70x70 cm 65x65 cm
7 50x50 cm 80x80 cm 75x75 cm
8 55x55 cm 90x90 cm 80x80 cm
